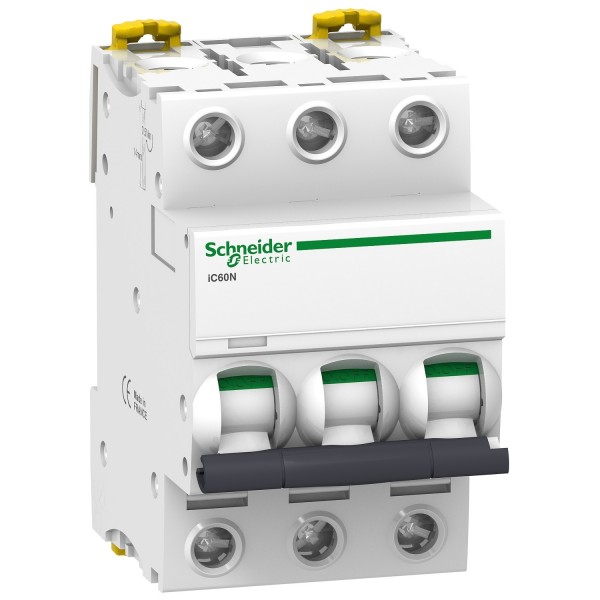

iC60N - miniatuurne kaitselüliti - 3P - 40A - D kõver - Kaitselülitid ja lahklülitid - Kilbitarvikud

Details

Main
device application	Distribution
range	Acti 9
product name	Acti 9 iC60
product or component type	Miniature circuit-breaker
device short name	IC60N
poles description	3P
number of protected poles	3
[In] rated current	40 A
network type	DC AC
trip unit technology	Thermal-magnetic
curve code	D
breaking capacity	6000 A Icn 400 V AC 50/60 Hz EN/IEC 60898-1 36 kA Icu 12...60 V AC 50/60 Hz EN/IEC 60947-2 10 kA Icu 380...415 V AC 50/60 Hz EN/IEC 60947-2 20 kA Icu 220...240 V AC 50/60 Hz EN/IEC 60947-2 6 kA Icu 440 V AC 50/60 Hz EN/IEC 60947-2 36 kA Icu 100...133 V AC 50/60 Hz EN/IEC 60947-2 10 kA Icu <= 180 V DC EN/IEC 60947-2
utilisation category	Category A EN 60947-2 Category A IEC 60947-2
suitability for isolation	Yes EN 60898-1 Yes EN 60947-2 Yes IEC 60898-1 Yes IEC 60947-2
standards	EN 60898-1 IEC 60947-2 EN 60947-2 IEC 60898-1

Complementary
network frequency	50/60 Hz
magnetic tripping limit	12 x In +/- 20 %
[Ics] rated service breaking capacity	15 kA 75 % EN 60947-2 - 220...240 V AC 50/60 Hz 7,5 kA 75 % EN 60947-2 - 380...415 V AC 50/60 Hz 4,5 kA 75 % EN 60947-2 - 440 V AC 50/60 Hz 15 kA 75 % IEC 60947-2 - 220...240 V AC 50/60 Hz 7,5 kA 75 % IEC 60947-2 - 380...415 V AC 50/60 Hz 4,5 kA 75 % IEC 60947-2 - 440 V AC 50/60 Hz 27 kA 75 % IEC 60947-2 - 12...133 V AC 50/60 Hz 27 kA 75 % EN 60947-2 - 12...133 V AC 50/60 Hz 6000 A 100 % EN 60898-1 - 400 V AC 50/60 Hz 6000 A 100 % IEC 60898-1 - 400 V AC 50/60 Hz 10 kA 100 % IEC 60947-2 - 125...180 V DC 10 kA 100 % EN 60947-2 - 125...180 V DC
[Ui] rated insulation voltage	500 V AC 50/60 Hz EN 60947-2 500 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage	6 kVEN 60947-2 6 kVIEC 60947-2
contact position indicator	Yes
control type	Toggle
local signalling	Trip indicator
mounting mode	Fixed
mounting support	DIN rail
comb busbar and distribution block compatibility	Top or bottom YES
9 mm pitches	6
height	85 mm
width	54 mm
depth	78,5 mm
net weight	0,375 kg
colour	White
mechanical durability	20000 cycles
electrical durability	10000 cycles
connections - terminals	Single terminal top or bottom) 1…35 mm² rigid Single terminal top or bottom) 1…25 mm² flexible
wire stripping length	14 mm top or bottom
tightening torque	3,5 N.m top or bottom
earth-leakage protection	Separate block

Environment
IP degree of protection	IP20 IEC 60529 IP20 EN 60529
pollution degree	3 EN 60947-2 3 IEC 60947-2
overvoltage category	IV
tropicalisation	2 IEC 60068-1
relative humidity	95 % 55 °C
operating altitude	0...2000 m
ambient air temperature for operation	-35…70 °C
ambient air temperature for storage	-40…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
