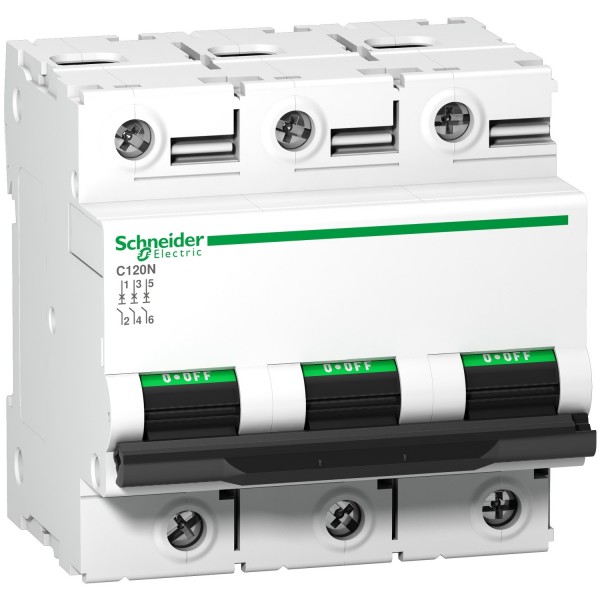

C120N - kaitselüliti - 3P - 63A - C kõver - Kaitselülitid ja lahklülitid - Kilbitarvikud

Details

Main
range of product	C120
range	Acti 9
product name	C120
product or component type	Miniature circuit-breaker
device short name	C120N
device application	Distribution
poles description	3P
number of protected poles	3
[In] rated current	63 A 30 °C
network type	AC
trip unit technology	Thermal-magnetic
curve code	C
breaking capacity	10000 A Icn 230...400 V AC 50/60 Hz EN/IEC 60898-1 6 kA Icu 440 V AC 50/60 Hz EN/IEC 60947-2 20 kA Icu 220...240 V AC 50/60 Hz EN/IEC 60947-2 10 kA Icu 380...415 V AC 50/60 Hz EN/IEC 60947-2 10 kA Icu <= 375 V DC EN/IEC 60947-2
suitability for isolation	Yes IEC 60947-2

Complementary
network frequency	50/60 Hz
[Ue] rated operational voltage	<= 375 V DC 380...415 V AC 50/60 Hz 220...240 V AC 50/60 Hz 440 V AC 50/60 Hz 230...400 V AC 50/60 Hz
magnetic tripping limit	5...10 x In
[Ics] rated service breaking capacity	7500 A 75 % EN/IEC 60898-1 - 230...400 V AC 50/60 Hz 4,5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz 7,5 kA 75 % EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 15 kA 75 % EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 10 kA 100 % EN/IEC 60947-2 - <= 375 V DC
limitation class	3 EN/IEC 60947-2
[Ui] rated insulation voltage	500 V AC 50/60 Hz EN/IEC 60947-2
[Uimp] rated impulse withstand voltage	6 kVEN/IEC 60947-2
contact position indicator	Yes
control type	Toggle
local signalling	ON/OFF indication
mounting mode	Clip-on
mounting support	35 mm symmetrical DIN rail
comb busbar and distribution block compatibility	YES
9 mm pitches	9
height	81 mm
width	81 mm
depth	73 mm
net weight	0,615 kg
colour	White
mechanical durability	20000 cycles
electrical durability	10000 cycles IEC 60947-2
connections - terminals	Tunnel type terminals 1…50 mm² rigid Tunnel type terminals 1,5…35 mm² flexible
wire stripping length	15 mm
tightening torque	3,5 N.m
earth-leakage protection	Separate block

Environment
standards	EN/IEC 60947-2 EN/IEC 60898-1
product certifications	EAC
IP degree of protection	IP20 IEC 60529
pollution degree	3 IEC 60947-2
overvoltage category	IV
tropicalisation	2 IEC 60068-1
relative humidity	95 % 55 °C
operating altitude	2000 m
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
