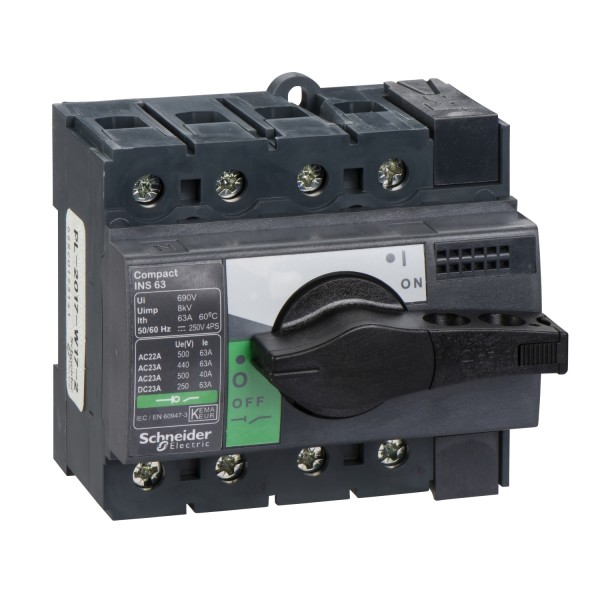

lahklüliti, Compact INS63, 63 A, musta pöördkäepidemega varustatud versioon, 4 poolust

Ülevaaded: 0

Tootekood: 28903

Quick Overview

Saadavus: Tellimisel

38,54 € (ilma KM-ta)

Details

Main
range
Compact
product name
Compact INS
product or component type
Switch disconnector
poles description
4P
network type
DC
AC
network frequency
50/60 Hz
[Ie] rated operational current
AC-22A 63 A AC 50/60 Hz 220/240 V
AC-22A 63 A AC 50/60 Hz 380/415 V
AC-22A 63 A AC 50/60 Hz 440/480 V
AC-22A 63 A AC 50/60 Hz 500 V
AC-23A 40 A AC 50/60 Hz 500 V
AC-23A 63 A AC 50/60 Hz 220/240 V
AC-23A 63 A AC 50/60 Hz 380/415 V
AC-23A 63 A AC 50/60 Hz 440/480 V
DC-22A 63 A DC 125 V 2 poles in series
DC-23A 63 A DC 125 V 2 poles in series
DC-22A 63 A DC 250 V 4 poles in series
DC-23A 63 A DC 250 V 4 poles in series
[Ui] rated insulation voltage
690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
8 kV
[Ith] conventional free air thermal current
63 A 60 °C
[Icm] rated short-circuit making capacity
15 kA switch-disconnector alone 500 V AC 50/60 Hz
75 kA with upstream protection circuit breaker 500 V AC 50/60 Hz
[Ue] rated operational voltage
500 V AC 50/60 Hz
250 V DC
suitability for isolation
Yes
contact position indicator
Yes
visible break
No
pollution degree
3
Complementary
control type
Rotary handle
handle colour
Black
mounting mode
Fixed
mounting support
Plate
DIN rail
upside connection
Front
downside connection
Front
cable cross section
1,5…50 mm²
maximum power
AC-23 15 kW 220/240 V AC 50/60 Hz
AC-23 22 kW 500/525 V AC 50/60 Hz
AC-23 30 kW 380/415 V AC 50/60 Hz
AC-23 30 kW 440 V AC 50/60 Hz
rated duty
Uninterrupted
intermittent duty class
Class 120 - 60 %
enclosure dimensions for Ithe
190 mm x 115 mm x 55 mm
[Icw] rated short-time withstand current
0,067 kA 20 s IEC 60947-3
1,73 kA 3 s IEC 60947-3
3 kA 1 s IEC 60947-3
5,5 kA 30 s IEC 60947-3
mechanical durability
20000 cycles
electrical durability
AC-22A 1500 cycles 220/240 V AC 50/60 Hz
AC-22A 1500 cycles 380/415 V AC 50/60 Hz
AC-22A 1500 cycles 440 V AC 50/60 Hz
AC-22A 1500 cycles 500 V AC 50/60 Hz
AC-23A 1500 cycles 220/240 V AC 50/60 Hz
AC-23A 1500 cycles 380/415 V AC 50/60 Hz
AC-23A 1500 cycles 440 V AC 50/60 Hz
AC-23A 1500 cycles 500 V AC 50/60 Hz
DC-22A 1500 cycles 250 V DC 4 poles in series
DC-23A 1500 cycles 250 V DC 4 poles in series
connection pitch
18 mm
height
85 mm
width
90 mm
depth
62,5 mm
net weight
0,6 kg
Environment
standards
IEC 60947-3
IEC 60947-1
product certifications
CCC
KEMA-KEUR
IP degree of protection
IP40 IEC 60529
IK degree of protection
IK07 EN 50102
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
