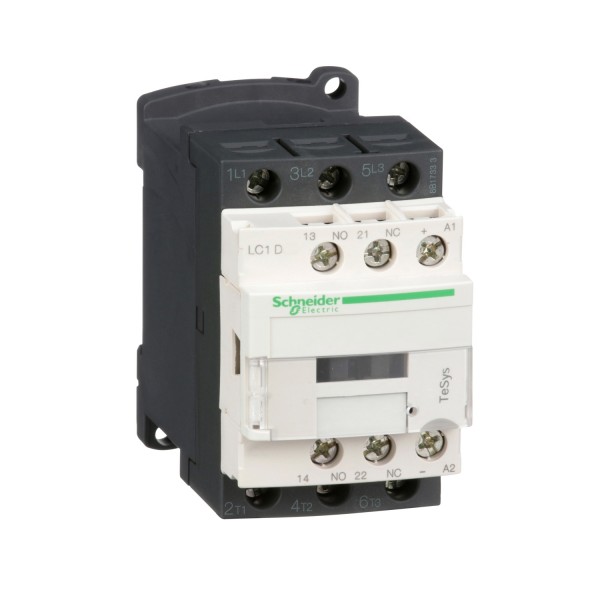

Tootekood: LC1D186BLS207

Quick Overview

Saadavus: Tellimisel

77,62 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys D
product or component type
Contactor
device short name
LC1D
contactor application
Motor control
Resistive load
utilisation category
AC-1
AC-3
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
Power circuit <= 690 V AC 25...400 Hz
[Ie] rated operational current
18 A 60 °C) <= 440 V AC AC-3 power circuit
32 A 60 °C) <= 440 V AC AC-1 power circuit
motor power kW
4 kW 220/230 V AC 50 Hz AC-3)
7,5 kW 380/400 V AC 50 Hz AC-3)
9 kW 415 V AC 50 Hz AC-3)
9 kW 440 V AC 50 Hz AC-3)
10 kW 500 V AC 50 Hz AC-3)
10 kW 660/690 V AC 50 Hz AC-3)
[Uc] control circuit voltage
24 V DC
coil type
Low consumption
auxiliary contact composition
1 NO + 1 NC
[Uimp] rated impulse withstand voltage
6 kV IEC 60947
overvoltage category
III
[Ith] conventional free air thermal current
10 A 60 °C signalling circuit
32 A 60 °C power circuit
Irms rated making capacity
140 A AC signalling circuit IEC 60947-5-1
250 A DC signalling circuit IEC 60947-5-1
300 A 440 V power circuit IEC 60947
rated breaking capacity
300 A 440 V power circuit IEC 60947
[Icw] rated short-time withstand current
100 A - 1 s signalling circuit
120 A - 500 ms signalling circuit
140 A - 100 ms signalling circuit
145 A 40 °C - 10 s power circuit
240 A 40 °C - 1 s power circuit
40 A 40 °C - 10 min power circuit
84 A 40 °C - 1 min power circuit
associated fuse rating
10 A gG signalling circuit IEC 60947-5-1
50 A gG <= 690 V type 1 power circuit
35 A gG <= 690 V type 2 power circuit
average impedance
2,5 mOhm - Ith 32 A 50 Hz power circuit
[Ui] rated insulation voltage
Power circuit 690 V IEC 60947-4-1
Signalling circuit 690 V IEC 60947-1
electrical durability
1,65 Mcycles 18 A AC-3 <= 440 V
1 Mcycles 32 A AC-1 <= 440 V
power dissipation per pole
2,5 W AC-1
0,8 W AC-3
safety cover
With
mounting support
Plate
Rail
standards
EN/IEC 60947-4-1
EN/IEC 60947-5-1
EN 45545 R22 HL3
EN 45545 R26 HL3
DIN 5510-2
product certifications
IEC
CCC
EAC
UA
TR
connections - terminals
Control circuit lugs-ring terminals 8 mm)
Power circuit lugs-ring terminals 9,5 mm)
tightening torque
Control circuit 1,7 N.m lugs-ring terminals flat Ø 6 mm M3.5
Control circuit 1,7 N.m lugs-ring terminals Philips No 2 M3.5
Power circuit 1,7 N.m lugs-ring terminals Philips No 2 M3.5
Power circuit 1,7 N.m lugs-ring terminals flat Ø 6 mm M3.5
operating time
55...75 ms closing
16...32 ms opening
safety reliability level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability
30 Mcycles
maximum operating rate
3600 cyc/h 60 °C
Complementary
coil technology
With integral suppression device
control circuit voltage limits
0.1...0.25 Uc 60 °C drop-out DC
0.7...1.25 Uc -40…70 °C operational DC
time constant
37 ms
inrush power in W
4 W 20 °C
hold-in power consumption in W
4 W 20 °C
auxiliary contacts type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1
Mirror contact 1 NC IEC 60947-4-1
signalling circuit frequency
25...400 Hz
minimum switching current
5 mA signalling circuit
minimum switching voltage
17 V signalling circuit
non-overlap time
1,5 ms on de-energisation between NC and NO contact
1,5 ms on energisation between NC and NO contact
insulation resistance
> 10 MOhm signalling circuit
Environment
IP degree of protection
IP20 front face IEC 60529
protective treatment
TH IEC 60068-2-30
pollution degree
3
ambient air temperature for operation
-25…60 °C
ambient air temperature for storage
-60…80 °C
permissible ambient air temperature around the device
-40…70 °C at Uc
operating altitude
3000 m without
fire resistance
850 °C IEC 60695-2-1
flame retardance
V0 UL 94
mechanical robustness
Vibrations contactor open2 Gn, 5...300 Hz
Vibrations contactor closed4 Gn, 5...300 Hz
Shocks contactor open10 Gn for 11 ms
Shocks contactor closed15 Gn for 11 ms
height
77 mm
width
45 mm
depth
95 mm
net weight
0,33 kg
