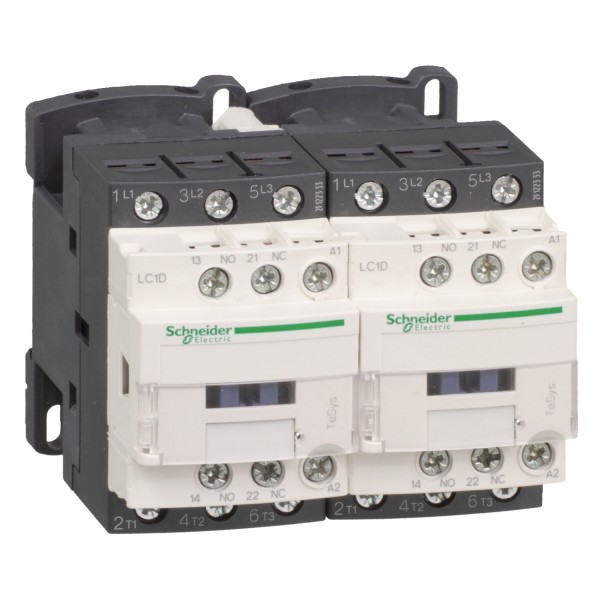

Tagurduskontaktor 575VAC 18A IEC

Ülevaaded: 0

Tootekood: LC2D18E7

Quick Overview

Saadavus: Tellimisel

77,24 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys D
product or component type
Reversing contactor
device short name
LC2D
contactor application
Motor control
Resistive load
utilisation category
AC-3
AC-1
device presentation
Preassembled with reversing power busbar
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
Power circuit <= 690 V AC 25...400 Hz
Power circuit <= 300 V DC
[Ie] rated operational current
18 A 60 °C) <= 440 V AC AC-3 power circuit
32 A 60 °C) <= 440 V AC AC-1 power circuit
motor power kW
4 kW 220...230 V AC 50 Hz
7,5 kW 380...400 V AC 50 Hz
9 kW 415...440 V AC 50 Hz
10 kW 500 V AC 50 Hz
10 kW 660...690 V AC 50 Hz
motor power HP (UL / CSA)
1 hp 115 V AC 60 Hz 1 phase
3 hp 230/240 V AC 60 Hz 1 phase
5 hp 200/208 V AC 60 Hz 3 phases
5 hp 230/240 V AC 60 Hz 3 phases
10 hp 460/480 V AC 60 Hz 3 phases
15 hp 575/600 V AC 60 Hz 3 phases
control circuit type
AC 50/60 Hz
[Uc] control circuit voltage
48 V AC 50/60 Hz
auxiliary contact composition
1 NO + 1 NC
[Uimp] rated impulse withstand voltage
6 kV IEC 60947
overvoltage category
III
[Ith] conventional free air thermal current
10 A 60 °C signalling circuit
32 A 60 °C power circuit
Irms rated making capacity
140 A AC signalling circuit IEC 60947-5-1
250 A DC signalling circuit IEC 60947-5-1
300 A 440 V power circuit IEC 60947
rated breaking capacity
300 A 440 V power circuit IEC 60947
[Icw] rated short-time withstand current
40 A 40 °C - 10 min power circuit
84 A 40 °C - 1 min power circuit
145 A 40 °C - 10 s power circuit
240 A 40 °C - 1 s power circuit
100 A - 1 s signalling circuit
120 A - 500 ms signalling circuit
140 A - 100 ms signalling circuit
associated fuse rating
10 A gG signalling circuit IEC 60947-5-1
50 A gG <= 690 V type 1 power circuit
35 A gG <= 690 V type 2 power circuit
average impedance
2,5 mOhm - Ith 32 A 50 Hz power circuit
[Ui] rated insulation voltage
Power circuit 690 V IEC 60947-4-1
Power circuit 600 V CSA
Power circuit 600 V UL
Signalling circuit 690 V IEC 60947-1
Signalling circuit 600 V CSA
Signalling circuit 600 V UL
electrical durability
1,65 Mcycles 18 A AC-3 <= 440 V
1 Mcycles 32 A AC-1 <= 440 V
power dissipation per pole
0,8 W AC-3
2,5 W AC-1
Front cover
With
interlocking type
Mechanical
mounting support
Plate
Rail
standards
CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
product certifications
BV
GL
LROS (Lloyds register of shipping)
CCC
DNV
GOST
RINA
CSA
UL
connections - terminals
Control circuit screw clamp terminals 1 1…4 mm²flexible without cable end
Control circuit screw clamp terminals 2 1…4 mm²flexible without cable end
Control circuit screw clamp terminals 1 1…4 mm²flexible with cable end
Control circuit screw clamp terminals 2 1…2,5 mm²flexible with cable end
Control circuit screw clamp terminals 1 1…4 mm²solid without cable end
Control circuit screw clamp terminals 2 1…4 mm²solid without cable end
Power circuit screw clamp terminals 1 1,5…6 mm²flexible without cable end
Power circuit screw clamp terminals 2 1,5…6 mm²flexible without cable end
Power circuit screw clamp terminals 1 1…6 mm²flexible with cable end
Power circuit screw clamp terminals 2 1…4 mm²flexible with cable end
Power circuit screw clamp terminals 1 1,5…6 mm²solid without cable end
Power circuit screw clamp terminals 2 1,5…6 mm²solid without cable end
tightening torque
Power circuit 1,7 N.m screw clamp terminals flat Ø 6 mm
Power circuit 1,7 N.m screw clamp terminals Philips No 2
Control circuit 1,7 N.m screw clamp terminals flat Ø 6 mm
Control circuit 1,7 N.m screw clamp terminals Philips No 2
operating time
12...22 ms closing
4...19 ms opening
safety reliability level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability
15 Mcycles
maximum operating rate
3600 cyc/h 60 °C
Complementary
coil technology
Without built-in suppressor module
control circuit voltage limits
Drop-out 0.3...0.6 Uc AC 50/60 Hz 60 °C)
Operational 0.8...1.1 Uc AC 50 Hz 60 °C)
Operational 0.85...1.1 Uc AC 60 Hz 60 °C)
inrush power in VA
70 VA 60 Hz 0,75 20 °C)
70 VA 50 Hz 0,75 20 °C)
hold-in power consumption in VA
7,5 VA 60 Hz 0,3 20 °C)
7 VA 50 Hz 0,3 20 °C)
heat dissipation
2…3 W 50/60 Hz
auxiliary contacts type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1
Mirror contact 1 NC IEC 60947-4-1
signalling circuit frequency
25...400 Hz
minimum switching current
5 mA signalling circuit
minimum switching voltage
17 V signalling circuit
non-overlap time
1,5 ms on de-energisation between NC and NO contact
1,5 ms on energisation between NC and NO contact
insulation resistance
> 10 MOhm signalling circuit
Environment
IP degree of protection
IP20 front face IEC 60529
protective treatment
TH IEC 60068-2-30
pollution degree
3
ambient air temperature for operation
-20…60 °C
ambient air temperature for storage
-60…80 °C
permissible ambient air temperature around the device
-40…70 °C at Uc
operating altitude
3000 m without
fire resistance
850 °C IEC 60695-2-1
flame retardance
V1 UL 94
mechanical robustness
Vibrations contactor open2 Gn, 5...300 Hz
Vibrations contactor closed4 Gn, 5...300 Hz
Shocks contactor open10 Gn for 11 ms
Shocks contactor closed15 Gn for 11 ms
height
77 mm
width
90 mm
depth
86 mm
net weight
0,707 kg
