ALAVOOLU TERMINALI PLOKK

Previous

TeSys D tagurduskontaktor - 3P (3 NO) - AC-3 - <= 440 V 95 A - 230 V AC spiraal

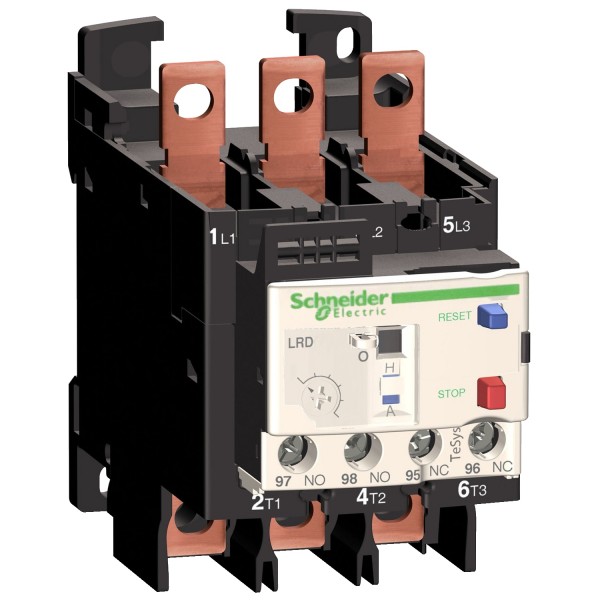

Termilise ülekoormuse releed TeSys LRD | 17...25A, klass 20

Ülevaaded: 0

Tootekood: LRD325L6

Quick Overview

Saadavus: Ei saa enam tellida

107,06 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys LRD
product or component type
Differential thermal overload relay
device short name
LRD
relay application
Motor protection
product compatibility
LC1D40A
LC1D65A
LC1D50A
network type
DC
AC
thermal protection adjustment range
17…25 A
[Ui] rated insulation voltage
Power circuit 600 V CSA
Power circuit 600 V UL
Power circuit 690 V IEC 60947-4-1
Complementary
network frequency
0...400 Hz
mounting support
Plate, with specific accessories
Rail, with specific accessories
Under contactor
tripping threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
[Ith] conventional free air thermal current
5 A signalling circuit
permissible current
3 A 120 V AC-15 signalling circuit
0,22 A 125 V DC-13 signalling circuit
[Ue] rated operational voltage
690 V AC 0...400 Hz
[Uimp] rated impulse withstand voltage
6 kV
phase failure sensitivity
Tripping current 130 % of Ir on two phase, the last one at 0
control type
Red push-button stop
Blue push-button reset
temperature compensation
-20…60 °C
connection pitch
17,5 mm
connections - terminals
Control circuit screw clamp terminals 2 1…2,5 mm² flexible without cable end
Control circuit screw clamp terminals 2 1…2,5 mm² flexible with cable end
Control circuit screw clamp terminals 2 1…2,5 mm² solid without cable end
Power circuit lugs-ring terminals
tightening torque
Control circuit 1,7 N.m screw clamp terminals
Power circuit 6 N.m lugs-ring terminals M6
height
70 mm
width
55 mm
depth
123 mm
net weight
0,375 kg
Environment
protective treatment
TH IEC 60068
IP degree of protection
IP20 IEC 60529
ambient air temperature for operation
-20…60 °C without derating IEC 60947-4-1
ambient air temperature for storage
-60…70 °C
flame retardance
V1 UL 94
mechanical robustness
Shocks15 Gn for 11 ms IEC 60068-2-7
Vibrations4 gn IEC 60068-2-6
dielectric strength
6 kV 50 Hz IEC 60255-5
standards
CSA C22.2 No 14
IEC 60947-4-1
IEC 60947-5-1
ATEX D 94/9/CE
EN 60947-4-1
EN 60947-5-1
UL 508
product certifications
EAC
UL
CSA
ATEX INERIS
ABS
Offer Sustainability
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Contractual warranty
Garantii
18 months
