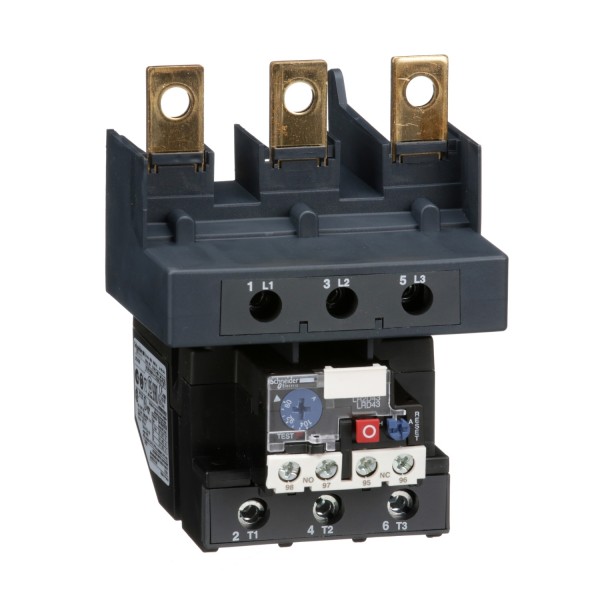

Termilise ülekoormuse releed TeSys LRD | 80...104A, klass 10A

Ülevaaded: 0

Tootekood: LRD4365

Quick Overview

Saadavus: Tellimisel

187,36 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys LRD
product or component type
Differential thermal overload relay
device short name
LRD
relay application
Motor protection
product compatibility
LC1D115
LC1D150
network type
AC
DC
thermal protection adjustment range
80…104 A
[Ui] rated insulation voltage
Power circuit 1000 V IEC 60947-4-1
Power circuit 600 V CSA
Power circuit 600 V UL
Complementary
network frequency
0...400 Hz
mounting support
Plate, with specific accessories
Rail, with specific accessories
Under contactor
tripping threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
[Ith] conventional free air thermal current
5 A signalling circuit
permissible current
0,06 A 440 V DC-13 signalling circuit
0,12 A 600 V AC-15 signalling circuit
[Ue] rated operational voltage
690 V AC 0...400 Hz
[Uimp] rated impulse withstand voltage
6 kV
phase failure sensitivity
Tripping current 130 % of Ir on two phase, the last one at 0
control type
Red push-button stop
Blue push-button reset
temperature compensation
-20…60 °C
connections - terminals
Power circuit screw clamp terminals 1 4…35 mm² flexible with cable end
Control circuit screw clamp terminals 2 1…2,5 mm² flexible without cable end
Control circuit screw clamp terminals 2 1…2,5 mm² flexible with cable end
Control circuit screw clamp terminals 2 1…2,5 mm² solid without cable end
Power circuit screw clamp terminals 1 4…50 mm² flexible without cable end
Power circuit screw clamp terminals 1 4…50 mm² solid without cable end
tightening torque
Control circuit 1,7 N.m screw clamp terminals
Power circuit 9 N.m screw clamp terminals
depth
132 mm
net weight
0,9 kg
Environment
protective treatment
TH IEC 60068
IP degree of protection
IP20 IEC 60529
ambient air temperature for operation
-20…60 °C without derating IEC 60947-4-1
ambient air temperature for storage
-60…70 °C
flame retardance
V1 UL 94
mechanical robustness
Vibrations6 Gn IEC 60068-2-6
Shocks15 Gn for 11 ms IEC 60068-2-7
dielectric strength
6 kV 50 Hz IEC 60255-5
standards
EN 60947-5-1
EN 60947-4-1
CSA C22.2 No 14
IEC 60947-4-1
ATEX D 94/9/CE
UL 508
IEC 60947-5-1
product certifications
GL
LROS (Lloyds register of shipping)
RINA
GOST
CCC
ATEX INERIS
BV
CSA
UL
DNV
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus
Ringlusprofiil
Contractual warranty
Garantii
18 months
