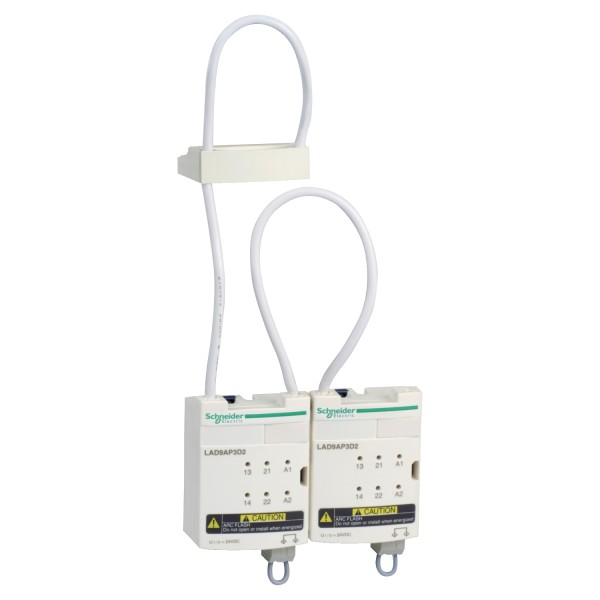

TeSys D LAD9 juhtimisühenduse moodul tagasikäigu mootori starterile GV2ME-GV3P

Ülevaaded: 0

Tootekood: LAD9AP3D2

Quick Overview

Saadavus: Ei saa enam tellida

68,27 € (ilma KM-ta)

Details

Main
range of product
TeSys D
product or component type
Control connection module
device short name
LAD9
product compatibility
GV2ME reversing
GV3P reversing
Complementary
[Ue] rated operational voltage
690 V
network frequency
50/60 Hz
[In] rated current
18 A per starter
60 A power circuit IEC 60439-1
60 A per sub-base IEC 60439-1
connections - terminals
Control circuit spring terminal 2 1,5 mm² flexible with cable end
Control circuit spring terminal 2 2,5 mm² flexible
Control circuit spring terminal 2 2,5 mm² solid
Power circuit spring terminal 3 16 mm² flexible with cable end
Power circuit spring terminal 3 25 mm² flexible
Power circuit spring terminal 3 25 mm² solid
[Ui] rated insulation voltage
750 V
[Ics] rated service breaking capacity
50 kA 415 V IEC 60439-1
[Icw] rated short-time withstand current
9,1 kA for 70 ms IEC 60439-1
[Uimp] rated impulse withstand voltage
6 kV power circuit
supply maximum power
0.36 W
derating factor
20 % of Imax GV2 circuit breaker 60 °C
mounting mode
Fixed
mounting support
Mounting plate
2 x 35 mm symmetrical DIN rail
minimum clearance distance
30 mm
net weight
0,19 kg
Environment
pollution degree
3
standards
IEC 60439-1
product certifications
UL
CSA
IP degree of protection
IP40
electromagnetic compatibility
Electrostatic discharge immunity test3 IEC 61000-4-2
Fast transients immunity test3 IEC 61000-4-4
Immunity to radiated fields 10 V/m 26...1000 MHz) IEC 61000-4-3
Radiated radio-frequency electromagnetic field immunity test 10 V 0.15...80 MHz) IEC 61000-4-6
Surge immunity test 0.6 kV 8...20 µs in differential mode) IEC 61000-4-5
Surge immunity test 2 kV 1.2...50 µs in common mode) IEC 61000-4-5
climatic withstand
Resistance to incandescent wire 960 °C IEC 60695-2-1
mechanical robustness
Shocks 11 ms half sine wave acceleration 15 gn) IEC 60068-2-27
Vibrations 3...100 Hz 0.7 gn) BV
Vibrations 3...100 Hz 0.7 gn) IEC 60068-2-6
Vibrations 3...100 Hz 0.7 gn) LR
Vibrations 2...100 Hz 4 gn) BV
Vibrations 2...100 Hz 4 gn) IEC 60068-2-6
Vibrations 2...100 Hz 4 gn) LR
ambient air temperature for operation
-5…40 °C wall mounted
-5…60 °C floor mounting
ambient air temperature for storage
-40…70 °C
Offer Sustainability
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
