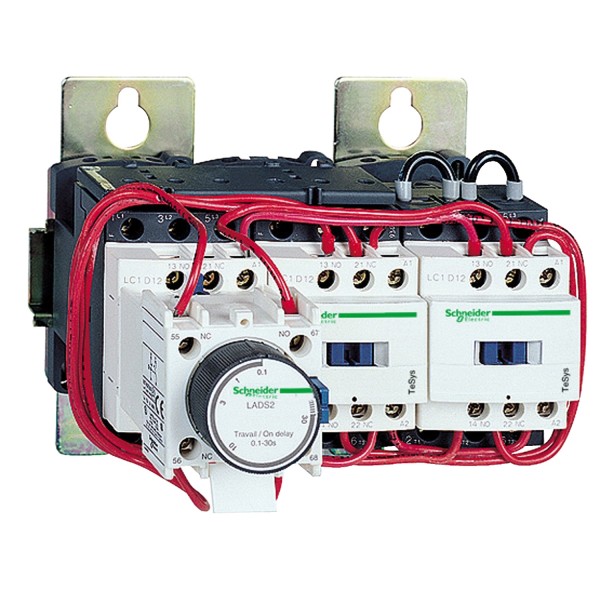

TeSys D - tähe delta starter - 3 x 3P (3 NO) - 150 A - 230 V vahelduvvoolu mähis

Ülevaaded: 0

Tootekood: LC3D150P7

Quick Overview

Saadavus: Tellimisel

3 548,25 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys D
product or component type
Star delta starter
device short name
LC3D
contactor application
Motor control
utilisation category
AC-3
device presentation
Pre-wired
poles description
3 x 3P
power pole contact composition
3 x 3 NO
[Ue] rated operational voltage
Power circuit <= 690 V AC 25...400 Hz
[Ie] rated operational current
150 A 60 °C) <= 440 V AC AC-3 power circuit
motor power kW
132 kW 380/400 V AC 50/60 Hz
132 kW 415 V AC 50/60 Hz
147 kW 440 V AC 50/60 Hz
75 kW 220/230 V AC 50/60 Hz
control circuit type
AC 50/60 Hz
[Uc] control circuit voltage
230 V AC 50/60 Hz
auxiliary contact composition
1 NC KM1 star contactor
1 NC KM2 line contactor
1 NO KM3 delta contactor
[Uimp] rated impulse withstand voltage
8 kV IEC 60947
overvoltage category
III
[Ui] rated insulation voltage
Power circuit 600 V CSA
Power circuit 600 V UL
Signalling circuit 600 V CSA
Signalling circuit 600 V UL
Power circuit 1000 V IEC 60947-4-1
Signalling circuit 1000 V IEC 60947-1
electrical durability
0,85 Mcycles 150 A AC-3 <= 440 V
mounting support
Plate
standards
EN 60947-4-1
IEC 60947-4-1
EN 60947-5-1
CSA C22.2 No 14
UL 508
IEC 60947-5-1
product certifications
RINA
UL
GOST
DNV
CSA
CCC
LROS (Lloyds register of shipping)
GL
BV
Complementary
connections - terminals
Power circuit connector 1 10…120 mm² flexible without cable end
Power circuit connector 2 10…50 mm² flexible without cable end
Power circuit connector 1 10…120 mm² flexible with cable end
Power circuit connector 2 10…50 mm² flexible with cable end
Power circuit connector 1 10…120 mm² solid without cable end
Power circuit connector 2 10…50 mm² solid without cable end
Control circuit connector 1 1…2,5 mm² flexible without cable end
Control circuit connector 2 1…2,5 mm² flexible without cable end
Control circuit connector 1 1…2,5 mm² flexible with cable end
Control circuit connector 2 1…2,5 mm² flexible with cable end
Control circuit connector 1 1…2,5 mm² solid without cable end
Control circuit connector 2 1…2,5 mm² solid without cable end
tightening torque
Power circuit 12 N.m connector flat Ø 6...8 mm
Control circuit 1,2 N.m connector flat Ø 6 mm
Control circuit 1,2 N.m connector Philips No 2
mechanical durability
8 Mcycles
maximum operating rate
30 cyc/h 60 °C
starting time
30 s
coil technology
Without built-in suppressor module
control circuit voltage limits
Drop-out 0.3...0.5 Uc 50/60 Hz 55 °C)
Operational 0.8...1.15 Uc 50/60 Hz 55 °C)
inrush power in VA
280…350 VA 60 Hz 0,9 20 °C)
280…350 VA 50 Hz 0,9 20 °C)
hold-in power consumption in VA
2…18 VA 60 Hz 0,9 20 °C)
2…18 VA 50 Hz 0,9 20 °C)
heat dissipation
3…4,5 W 50/60 Hz
auxiliary contacts type
Mechanically linked IEC 60947-5-1 3 x 1 NO + 1 NC
Mirror contact IEC 60947-4-1 3 x 1 NC
signalling circuit frequency
25...400 Hz
minimum switching current
5 mA signalling circuit
minimum switching voltage
17 V signalling circuit
non-overlap time
1,5 ms on de-energisation between NC and NO contact
1,5 ms on energisation between NC and NO contact
width
450 mm
height
555 mm
depth
205 mm
net weight
12,1 kg
Environment
insulation resistance
> 10 MOhm signalling circuit
IP degree of protection
IP20 front face IEC 60529
protective treatment
TH IEC 60068-2-30
pollution degree
3
ambient air temperature for storage
-60…80 °C
ambient air temperature for operation
-40…70 °C at Uc
operating altitude
3000 m without
fire resistance
850 °C IEC 60695-2-1
flame retardance
V1 UL 94
mechanical robustness
Vibrations contactor open2 Gn, 5...300 Hz
Vibrations contactor closed4 Gn, 5...300 Hz
Shocks contactor closed15 Gn for 11 ms
Shocks contactor open6 Gn for 11 ms
