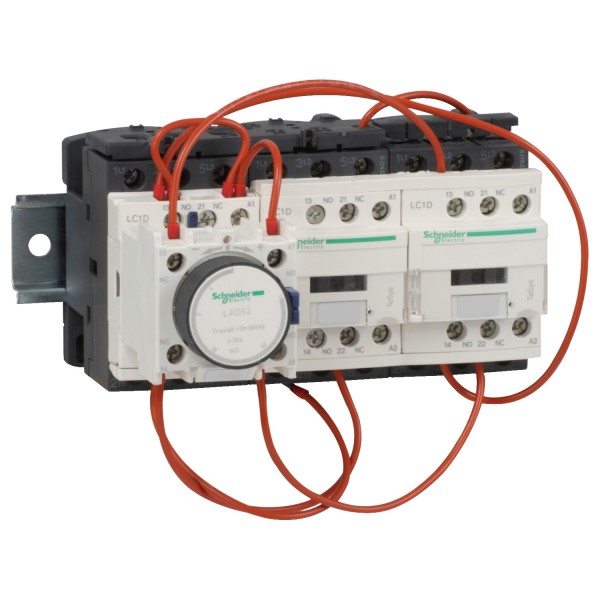

TeSys D - tähe delta starter - 3 x 3P (3 NO) - 9 A - 230 V vahelduvvoolu mähis

TeSys

TeSys D

Star delta starter

LC3D

Motor control

AC-3

Pre-wired

3 x 3P

3 x 3 NO

Power circuit: <= 690 V AC 25...400 Hz

9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit

4 kW at 220/230 V AC 50/60 Hz
7.5 kW at 380/400 V AC 50/60 Hz
7.5 kW at 415 V AC 50/60 Hz
7.5 kW at 440 V AC 50/60 Hz

AC at 50/60 Hz

230 V AC 50/60 Hz

1 NC for KM1 star contactor

6 kV conforming to IEC 60947

III

Power circuit: 690 V conforming to IEC 60947-4-1
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Signalling circuit: 690 V conforming to IEC 60947-1
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified

2 Mcycles 9 A AC-3 at Ue <= 440 V

Protective cover

Mechanical

Plate

UL 508
EN 60947-5-1
IEC 60947-5-1
EN 60947-4-1
CSA C22.2 No 14
IEC 60947-4-1

CCC
CSA
DNV
GOST
LROS (Lloyds register of shipping)
UL
BV
RINA
GL

Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end

Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2

15 Mcycles

30 cyc/h 60 °C

30 s

Without built-in suppressor module

Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)
Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)

70 VA 60 Hz cos phi 0.75 (at 20 °C)
70 VA 50 Hz cos phi 0.75 (at 20 °C)

7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
7 VA 50 Hz cos phi 0.3 (at 20 °C)

2…3 W at 50/60 Hz

Mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NC
Mirror contact conforming to IEC 60947-4-1 3 x 1 NC

25...400 Hz

5 mA for signalling circuit

17 V for signalling circuit

1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact

143 mm

124 mm

143 mm

1.53 kg

> 10 MOhm for signalling circuit

IP20 front face conforming to IEC 60529

TH conforming to IEC 60068-2-30

3

-60…80 °C

-40…70 °C at Uc

3000 m without

850 °C conforming to IEC 60695-2-1

V1 conforming to UL 94

Vibrations contactor open: 2 Gn, 5...300 Hz
Vibrations contactor closed: 4 Gn, 5...300 Hz
Shocks contactor open: 10 Gn for 11 ms
Shocks contactor closed: 15 Gn for 11 ms

Green Premium product

Yes

Compliant
EU RoHS Declaration

Yes

Yes

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

18 months
