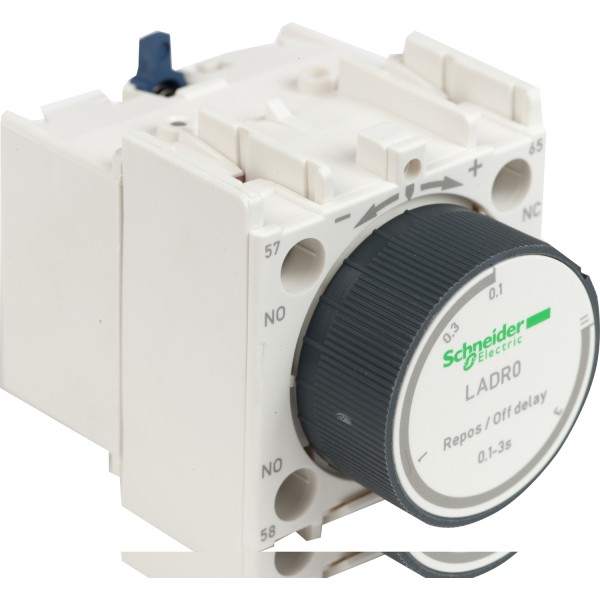

TeSys D - viivitusega abikontaktplokk - 1 NO + 1 NC kruvikinnitusklemm

Tootekood: LADR0

Quick Overview

Saadavus: Tellimisel

37,96 € (ilma KM-ta)

Qty:

Details

Main
range of product	TeSys D control relay TeSys F TeSys D
range	TeSys
product or component type	Time delay auxiliary contact block
pole contact composition	1 NO + 1 NC
connections - terminals	screw clamp terminals 1 1…2,5 mm²flexible with cable end screw clamp terminals 1 1…2,5 mm²flexible without cable end screw clamp terminals 2 1…2,5 mm²flexible with cable end screw clamp terminals 2 1…2,5 mm²flexible without cable end screw clamp terminals 1 1…2,5 mm²solid with cable end screw clamp terminals 1 1…2,5 mm²solid without cable end screw clamp terminals 2 1…2,5 mm²solid with cable end screw clamp terminals 2 1…2,5 mm²solid without cable end

Complementary
mounting location	Front
[Ui] rated insulation voltage	600 V UL 690 V IEC 60947-5-1 600 V CSA
[Ue] rated operational voltage	690 V AC 25...400 Hz
[Ith] conventional free air thermal current	10 A 60 °C
Irms rated making capacity	140 A AC IEC 60947-5-1 250 A DC IEC 60947-5-1
permissible short-time rating	100 A 60 °C 1 s 120 A 60 °C 500 ms 140 A 60 °C 100 ms
protection type	GG fuse 10 A
associated fuse rating	10 A gG IEC 60947-5-1
mechanical durability	5 Mcycles
minimum switching current	5 mA
minimum switching voltage	17 V
non-overlap time	1,5 ms on de-energisation no overlap between NC and NO contact 1,5 ms on energisation no overlap between NC and NO contact
timer type	Off delay
time delay range	0.1...3 s
insulation resistance	> 10 MOhm

Environment
environmental characteristic	Normal environment
standards	NF C 63-140 EN 60947-5-1 VDE 0660 BS 4794 IEC 60947-5-1
product certifications	CSA UL
IP degree of protection	IP2x VDE 0660
protective treatment	TH IEC 60068
ambient air temperature for operation	-5…60 °C
ambient air temperature for storage	-60…80 °C
operating altitude	3000 m

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
