Kontaktor TeSys D | 440V 38A, 230V AC 50...60Hz mähis, 3P (3NO), AC-3

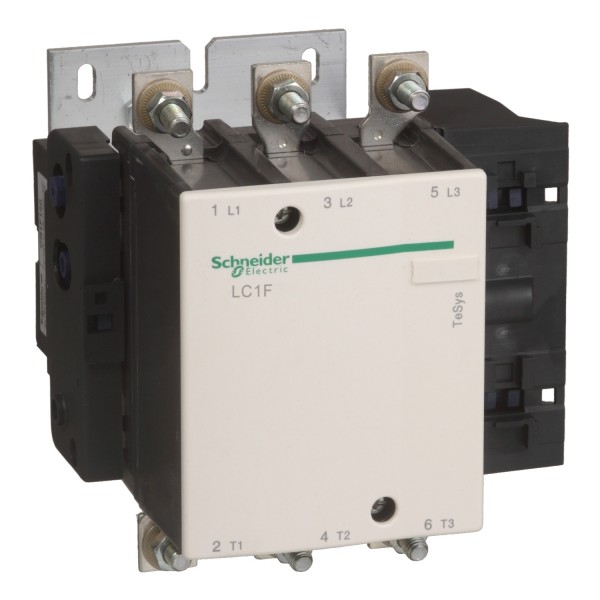

TeSys F kontaktor - 3P (3 NO) - AC-3 - <= 440 V 150 A - pool 115 V AC

Ülevaaded: 0

Tootekood: LC1F150P7

Quick Overview

Saadavus: Tellimisel

361,66 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys F
product or component type
Contactor
device short name
LC1F
contactor application
Resistive load
Motor control
utilisation category
AC-1
AC-4
AC-3
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 690 V AC 50/60 Hz
[Ie] rated operational current
250 A 40 °C) <= 440 V AC-1
150 A 55 °C) <= 440 V AC-3
motor power kW
75 kW 380...400 V AC 50/60 Hz AC-3)
80 kW 415 V AC 50/60 Hz AC-3)
80 kW 440 V AC 50/60 Hz AC-3)
90 kW 500 V AC 50/60 Hz AC-3)
100 kW 660...690 V AC 50/60 Hz AC-3)
40 kW 220...230 V AC 50/60 Hz AC-3)
22 kW 400 V AC 50/60 Hz AC-4)
[Uc] control circuit voltage
230 V AC 40...400 Hz
Complementary
[Uimp] rated impulse withstand voltage
8 kV
overvoltage category
III
[Ith] conventional free air thermal current
250 A 40 °C
rated breaking capacity
1200 A IEC 60947-4-1
[Icw] rated short-time withstand current
1200 A 40 °C - 10 s
700 A 40 °C - 30 s
600 A 40 °C - 1 min
450 A 40 °C - 3 min
350 A 40 °C - 10 min
associated fuse rating
160 A aM <= 440 V
250 A gG <= 440 V
average impedance
0,35 mOhm - Ith 250 A 50 Hz
[Ui] rated insulation voltage
1000 V IEC 60947-4-1
1500 V VDE 0110 group C
power dissipation per pole
22 W AC-1
8 W AC-3
mounting support
Plate
standards
IEC 60947-4-1
IEC 60947-1
JIS C8201-4-1
EN 60947-1
EN 60947-4-1
product certifications
RINA
LROS (Lloyds register of shipping)
UL
DNV
BV
RMRoS
CCC
ABS
CB
connections - terminals
Control circuit screw clamp terminals 1 1…4 mm²flexible without cable end
Control circuit screw clamp terminals 2 1…4 mm²flexible without cable end
Control circuit screw clamp terminals 1 1…4 mm²flexible with cable end
Control circuit screw clamp terminals 2 1…2,5 mm²flexible with cable end
Control circuit screw clamp terminals 1 1…4 mm²solid without cable end
Control circuit screw clamp terminals 2 1…4 mm²solid without cable end
Power circuit bar 2 25 x 3 mm
Power circuit lugs-ring terminals 1 120 mm²
Power circuit connector 1 120 mm²
Power circuit bolted connection
tightening torque
Control circuit 1,2 N.m
Power circuit 18 N.m
control circuit voltage limits
Operational 0.85...1.1 Uc 40...400 Hz 55 °C)
Drop-out 0.35...0.55 Uc 40...400 Hz 55 °C)
inrush power in VA
770 VA 40...400 Hz 0,9 20 °C)
hold-in power consumption in VA
8,1 VA 40...400 Hz 0,9 20 °C)
heat dissipation
5,9…7,2 W
operating time
35 ms closing at Uc)
130 ms opening at Uc)
mechanical durability
10 Mcycles
maximum operating rate
2400 cyc/h 55 °C
compatibility code
LC1F
Environment
IP degree of protection
IP2x front face with shrouds IEC 60529
IP2x front face with shrouds VDE 0106
protective treatment
TH
ambient air temperature for operation
-40…60 °C
ambient air temperature for storage
-60…80 °C
permissible ambient air temperature around the device
60…70 °C at Uc
operating altitude
3000 m without derating
height
170 mm
width
163,5 mm
depth
171 mm
net weight
3,43 kg
