TeSys D tagurduskontaktor - 3P (3 NO) - AC-3 - <= 440 V 40 A - 110 V AC spiraal

Previous

Kontaktor TeSys D | 440V 40A, 380V AC 50...60Hz mähis, 3P (3NO), AC-3

TeSys F kontaktor - 3P (3 NO) - AC-3 - <= 440 V 330 A - spiraal 24 V AC

Ülevaaded: 0

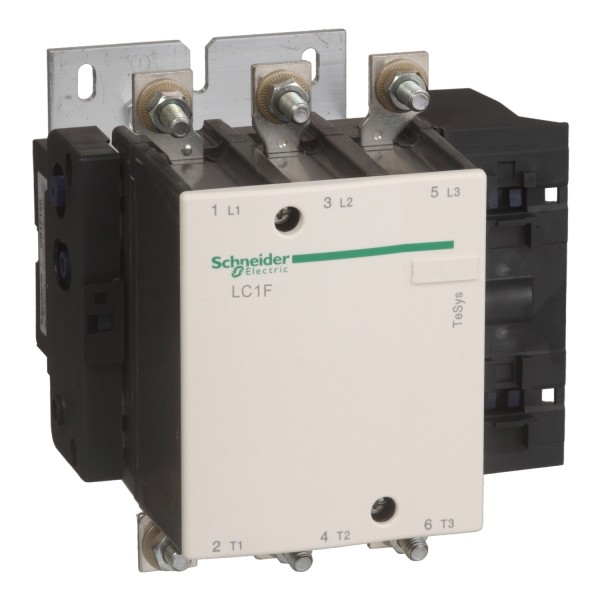

Tootekood: LC1F330B7

Quick Overview

Saadavus: Tellimisel

759,87 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys F
product or component type
Contactor
device short name
LC1F
contactor application
Motor control
Resistive load
utilisation category
AC-4
AC-3
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 1000 V AC 50/60 Hz
<= 460 V DC
[Ie] rated operational current
400 A 40 °C) <= 440 V AC AC-1
330 A 55 °C) <= 440 V AC AC-3
motor power kW
160 kW 380...400 V AC 50/60 Hz AC-3)
180 kW 415 V AC 50/60 Hz AC-3)
200 kW 440 V AC 50/60 Hz AC-3)
200 kW 500 V AC 50/60 Hz AC-3)
220 kW 660...690 V AC 50/60 Hz AC-3)
160 kW 1000 V AC 50/60 Hz AC-3)
100 kW 220...230 V AC 50/60 Hz AC-3)
59 kW 400 V AC 50/60 Hz AC-4)
[Uc] control circuit voltage
24 V AC 40...400 Hz
Complementary
[Uimp] rated impulse withstand voltage
8 kV
overvoltage category
III
[Ith] conventional free air thermal current
400 A 40 °C
rated breaking capacity
2640 A IEC 60947-4-1
[Icw] rated short-time withstand current
2650 A 40 °C - 10 s
1800 A 40 °C - 30 s
1300 A 40 °C - 1 min
900 A 40 °C - 3 min
750 A 40 °C - 10 min
associated fuse rating
400 A aM <= 440 V
500 A gG <= 440 V
average impedance
0,28 mOhm - Ith 400 A 50 Hz
[Ui] rated insulation voltage
1000 V IEC 60947-4-1
1500 V VDE 0110 group C
power dissipation per pole
44 W AC-1
31 W AC-3
mounting support
Plate
standards
EN 60947-1
JIS C8201-4-1
IEC 60947-4-1
EN 60947-4-1
IEC 60947-1
product certifications
RINA
RMRoS
ABS
CCC
BV
DNV
LROS (Lloyds register of shipping)
CB
UL
connections - terminals
Control circuit screw clamp terminals 1 1…4 mm²flexible without cable end
Control circuit screw clamp terminals 2 1…4 mm²flexible without cable end
Control circuit screw clamp terminals 1 1…4 mm²flexible with cable end
Control circuit screw clamp terminals 2 1…2,5 mm²flexible with cable end
Control circuit screw clamp terminals 1 1…4 mm²solid without cable end
Control circuit screw clamp terminals 2 1…4 mm²solid without cable end
Power circuit lugs-ring terminals 1 240 mm²
Power circuit bar 2 30 x 5 mm
Power circuit bolted connection
tightening torque
Control circuit 1,2 N.m
Power circuit 35 N.m
control circuit voltage limits
Operational 0.85...1.1 Uc 40...400 Hz 55 °C)
Drop-out 0.35...0.55 Uc 40...400 Hz 55 °C)
inrush power in VA
650 VA 40...400 Hz 0,9 20 °C)
hold-in power consumption in VA
10 VA 40...400 Hz 0,9 20 °C)
heat dissipation
8 W
operating time
40...65 ms closing
100...170 ms opening
mechanical durability
10 Mcycles
maximum operating rate
2400 cyc/h 55 °C
compatibility code
LC1F
Environment
IP degree of protection
IP20 front face with shrouds IEC 60529
IP20 front face with shrouds VDE 0106
protective treatment
TH
ambient air temperature for operation
-5…55 °C
ambient air temperature for storage
-60…80 °C
permissible ambient air temperature around the device
-40…70 °C
height
206 mm
width
213 mm
depth
219 mm
net weight
8,6 kg
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
