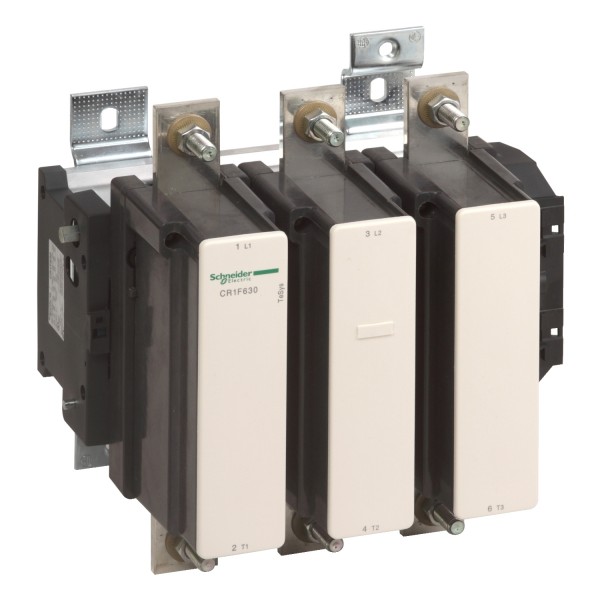

TeSys F kontaktor - 3P (3 NO) - AC-3 - <= 440 V 800 A - spiraal 400 V DC

Ülevaaded: 0

Tootekood: LC1F800QW

Quick Overview

Saadavus: Tellimisel

2 586,12 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys F
product or component type
Contactor
device short name
LC1F
contactor application
Resistive load
Motor control
utilisation category
AC-3
AC-1
AC-4
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 1000 V AC 50/60 Hz
<= 460 V DC
[Ie] rated operational current
1000 A 40 °C) <= 440 V AC AC-1
800 A 55 °C) <= 440 V AC AC-3
motor power kW
450 kW 1000 V AC 50/60 Hz AC-3)
450 kW 500 V AC 50/60 Hz AC-3)
475 kW 660...690 V AC 50/60 Hz AC-3)
110 kW 400 V AC 50/60 Hz AC-4)
450 kW 380...400 V AC 50/60 Hz AC-3)
450 kW 415 V AC 50/60 Hz AC-3)
450 kW 440 V AC 50/60 Hz AC-3)
250 kW 220...230 V AC 50/60 Hz AC-3)
[Uc] control circuit voltage
400 V DC
380...415 V AC 40...400 Hz
coil type
Standard
Complementary
[Uimp] rated impulse withstand voltage
8 kV
overvoltage category
III
[Ith] conventional free air thermal current
1000 A 40 °C
rated breaking capacity
6400 A IEC 60947-4-1
[Icw] rated short-time withstand current
5500 A 40 °C - 10 s
4600 A 40 °C - 30 s
3600 A 40 °C - 1 min
2600 A 40 °C - 3 min
1700 A 40 °C - 10 min
associated fuse rating
1000 A gG <= 440 V
800 A aM <= 440 V
average impedance
0,12 mOhm - Ith 1000 A 50 Hz
[Ui] rated insulation voltage
1000 V IEC 60947-4-1
1500 V VDE 0110 group C
power dissipation per pole
120 W AC-1
77 W AC-3
mounting support
Plate
standards
JIS C8201-4-1
IEC 60947-4-1
EN 60947-4-1
IEC 60947-1
EN 60947-1
product certifications
UL
CSA
RMRoS
CB
ABS
CCC
connections - terminals
Control circuit screw clamp terminals 1 1…4 mm²flexible without cable end
Control circuit screw clamp terminals 2 1…4 mm²flexible without cable end
Control circuit screw clamp terminals 1 1…4 mm²flexible with cable end
Control circuit screw clamp terminals 2 1…2,5 mm²flexible with cable end
Control circuit screw clamp terminals 1 1…4 mm²solid without cable end
Control circuit screw clamp terminals 2 1…4 mm²solid without cable end
Power circuit bar 2 60 x 5 mm
Power circuit bolted connection
tightening torque
Control circuit 1,2 N.m
Power circuit 58 N.m
control circuit voltage limits
Operational 0.85...1.1 Uc 55 °C)
Drop-out 0.3...0.5 Uc 55 °C)
inrush power in W
1900 W 20 °C)
hold-in power consumption in W
12 W 20 °C
heat dissipation
12 W
operating time
40...50 ms opening
60...80 ms closing
mechanical durability
5 Mcycles
maximum operating rate
600 cyc/h 55 °C
compatibility code
LC1F
motor power range
250…500 kW 200…240 V 3 phases
250…500 kW 380…440 V 3 phases
110…220 kW 200…240 V 3 phases
250…500 kW 480…500 V 3 phases
motor starter type
Direct on-line contactor
contactor coil voltage
400 V DC standard
400 V AC standard
380 V AC standard
415 V AC standard
Environment
IP degree of protection
IP20 front face with shrouds IEC 60529
IP20 front face with shrouds VDE 0106
protective treatment
TH
ambient air temperature for operation
-5…55 °C
ambient air temperature for storage
-60…80 °C
permissible ambient air temperature around the device
-5…55 °C
height
304 mm
width
309 mm
depth
255 mm
net weight
18,75 kg
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
