TeSys F - täisnurkne pistik - suur

Previous

Kontaktor TeSys D | 440V 50A, 24V AC, 50...60Hz, 3P (3NO), AC-3

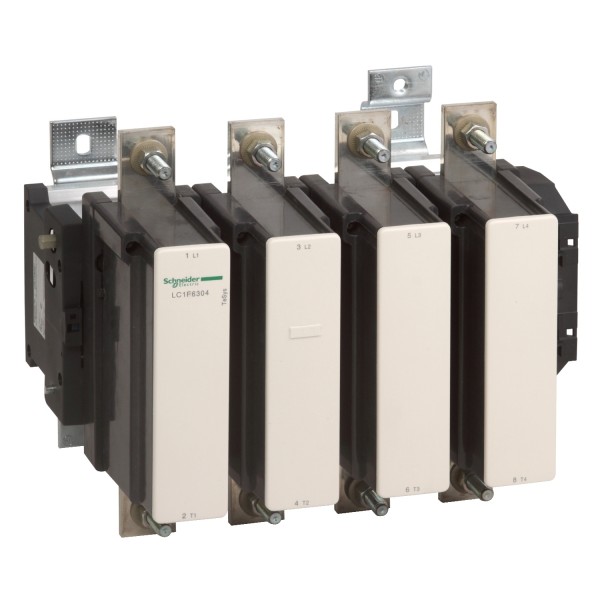

TeSys F kontaktor - 4P (4 NO) - AC-1 - <= 440 V 1000 A - spiraal 230 V AC

Ülevaaded: 0

Tootekood: LC1F6304P7

Quick Overview

Saadavus: Tellimisel

2 115,52 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys F
product or component type
Contactor
device short name
LC1F
contactor application
Resistive load
utilisation category
AC-1
poles description
4P
power pole contact composition
4 NO
[Ue] rated operational voltage
<= 1000 V AC 50/60 Hz
<= 460 V DC
[Ie] rated operational current
1000 A 40 °C) <= 440 V AC AC-1
[Uc] control circuit voltage
230 V AC 40...400 Hz
Complementary
[Uimp] rated impulse withstand voltage
8 kV
overvoltage category
III
[Ith] conventional free air thermal current
1000 A 40 °C
1250 A
rated breaking capacity
5040 A IEC 60947-4-1
[Icw] rated short-time withstand current
5050 A 40 °C - 10 s
4400 A 40 °C - 30 s
3400 A 40 °C - 1 min
2200 A 40 °C - 3 min
1600 A 40 °C - 10 min
associated fuse rating
1000 A gG <= 440 V
630 A aM <= 440 V
average impedance
0,12 mOhm - Ith 1000 A 50 Hz
[Ui] rated insulation voltage
1000 V IEC 60947-4-1
1500 V VDE 0110 group C
power dissipation per pole
120 W AC-1
mounting support
Plate
standards
EN 60947-1
IEC 60947-1
JIS C8201-4-1
IEC 60947-4-1
EN 60947-4-1
product certifications
CCC
ABS
UL
LROS (Lloyds register of shipping)
DNV
CB
RMRoS
RINA
BV
connections - terminals
Control circuit screw clamp terminals 1 1…4 mm²flexible without cable end
Control circuit screw clamp terminals 2 1…4 mm²flexible without cable end
Control circuit screw clamp terminals 1 1…4 mm²flexible with cable end
Control circuit screw clamp terminals 2 1…2,5 mm²flexible with cable end
Control circuit screw clamp terminals 1 1…4 mm²solid without cable end
Control circuit screw clamp terminals 2 1…4 mm²solid without cable end
Power circuit bar 2 60 x 5 mm
Power circuit bolted connection
tightening torque
Control circuit 1,2 N.m
Power circuit 58 N.m
control circuit voltage limits
Operational 0.85...1.1 Uc 40...400 Hz 55 °C)
Drop-out 0.25...0.5 Uc 40...400 Hz 55 °C)
inrush power in VA
1650 VA 40...400 Hz 0,9 20 °C)
hold-in power consumption in VA
22 VA 40...400 Hz 0,9 20 °C)
heat dissipation
20 W
operating time
40...80 ms closing
100...200 ms opening
mechanical durability
5 Mcycles
maximum operating rate
1200 cyc/h 55 °C
compatibility code
LC1F
Environment
IP degree of protection
IP20 front face with shrouds IEC 60529
IP20 front face with shrouds VDE 0106
protective treatment
TH
ambient air temperature for operation
-5…55 °C
ambient air temperature for storage
-60…80 °C
permissible ambient air temperature around the device
-40…70 °C
height
304 mm
width
389 mm
depth
255 mm
net weight
21,5 kg
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
