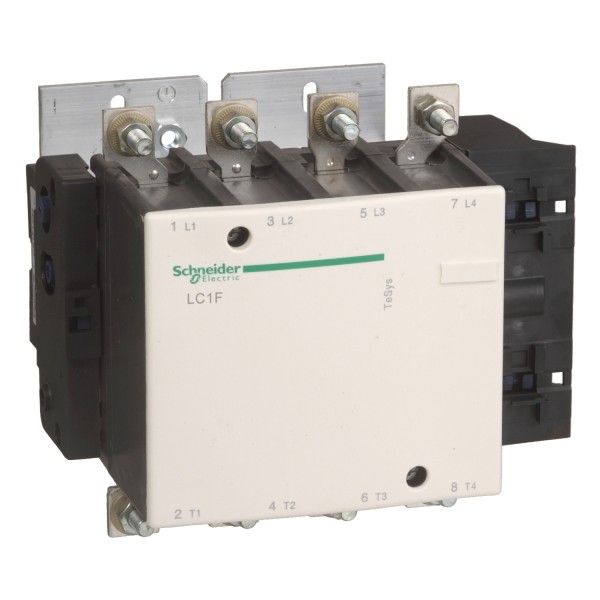

TeSys F kontaktor - 4P (4 NO) - AC-1 - <= 440 V 315 A - spiraal 400 V AC

Ülevaaded: 0

Tootekood: LC1F2254V7

Quick Overview

Saadavus: Ei saa enam tellida

940,43 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys F
product or component type
Contactor
device short name
LC1F
contactor application
Resistive load
utilisation category
AC-1
poles description
4P
power pole contact composition
4 NO
[Ue] rated operational voltage
<= 460 V DC
<= 690 V AC 50/60 Hz
[Ie] rated operational current
315 A 40 °C) <= 440 V AC-1
[Uc] control circuit voltage
400 V AC 40...400 Hz
Complementary
[Uimp] rated impulse withstand voltage
8 kV
overvoltage category
III
[Ith] conventional free air thermal current
315 A 40 °C
rated breaking capacity
1800 A IEC 60947-4-1
[Icw] rated short-time withstand current
1800 A 40 °C - 10 s
1000 A 40 °C - 30 s
850 A 40 °C - 1 min
560 A 40 °C - 3 min
440 A 40 °C - 10 min
associated fuse rating
315 A gG <= 440 V
250 A aM <= 440 V
average impedance
0,32 mOhm - Ith 315 A 50 Hz
[Ui] rated insulation voltage
1000 V IEC 60947-4-1
1500 V VDE 0110 group C
power dissipation per pole
32 W AC-1
mounting support
Plate
standards
IEC 60947-1
EN 60947-4-1
IEC 60947-4-1
JIS C8201-4-1
EN 60947-1
product certifications
CCC
RINA
ABS
BV
RMRoS
CB
UL
DNV
LROS (Lloyds register of shipping)
connections - terminals
Control circuit screw clamp terminals 1 1…4 mm²flexible without cable end
Control circuit screw clamp terminals 2 1…4 mm²flexible without cable end
Control circuit screw clamp terminals 1 1…4 mm²flexible with cable end
Control circuit screw clamp terminals 2 1…2,5 mm²flexible with cable end
Control circuit screw clamp terminals 1 1…4 mm²solid without cable end
Control circuit screw clamp terminals 2 1…4 mm²solid without cable end
Power circuit bar 2 32 x 4 mm
Power circuit lugs-ring terminals 1 185 mm²
Power circuit connector 1 185 mm²
Power circuit bolted connection
tightening torque
Control circuit 1,2 N.m
Power circuit 35 N.m
control circuit voltage limits
Operational 0.85...1.1 Uc 40...400 Hz 55 °C)
Drop-out 0.35...0.55 Uc 40...400 Hz 55 °C)
inrush power in VA
1070 VA 40...400 Hz 0,9 20 °C)
hold-in power consumption in VA
9,9 VA 40...400 Hz 0,9 20 °C)
heat dissipation
8…9,8 W
operating time
35 ms closing at Uc)
130 ms opening at Uc)
mechanical durability
10 Mcycles
maximum operating rate
2400 cyc/h 55 °C
compatibility code
LC1F
Environment
IP degree of protection
IP20 front face with shrouds IEC 60529
IP20 front face with shrouds VDE 0106
protective treatment
TH
ambient air temperature for operation
-5…55 °C
ambient air temperature for storage
-60…80 °C
permissible ambient air temperature around the device
-40…70 °C
height
197 mm
width
208,5 mm
depth
181 mm
net weight
5,55 kg
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
