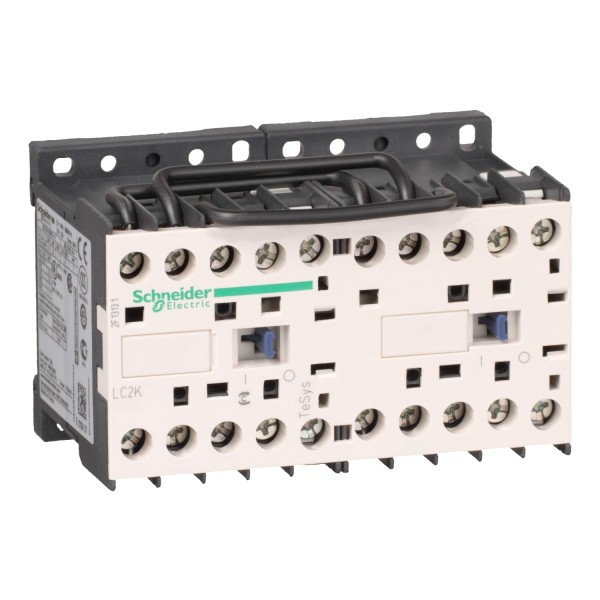

TeSys K tagurduskontaktor - 3P - AC-3 <= 440 V 9 A - 1 NC - 42 V vahelduvvoolu mähis

Ülevaaded: 0

Tootekood: LC2K0901D7

Quick Overview

Saadavus: Ei saa enam tellida

40,55 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys K
product or component type
Reversing contactor
device short name
LC2K
device application
Control
contactor application
Resistive load
Motor control
utilisation category
AC-1
AC-3
AC-4
device presentation
Preassembled with reversing power busbar
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
Power circuit 690 V AC 50/60 Hz
Signalling circuit <= 690 V AC 50/60 Hz
[Ie] rated operational current
20 A 50 °C) <= 440 V AC AC-1 power circuit
16 A 70 °C) 690 V AC AC-1 power circuit
9 A<= 440 V AC AC-3 power circuit
motor power kW
2,2 kW 220...230 V AC 50/60 Hz
4 kW 380...415 V AC 50/60 Hz
4 kW 440 V AC 50/60 Hz
4 kW 480 V AC 50/60 Hz
4 kW 500...600 V AC 50/60 Hz
4 kW 660...690 V AC 50/60 Hz
control circuit type
AC 50/60 Hz
[Uc] control circuit voltage
42 V AC 50/60 Hz
auxiliary contact composition
1 NC
[Uimp] rated impulse withstand voltage
8 kV
overvoltage category
III
[Ith] conventional free air thermal current
20 A 50 °C power circuit
10 A 50 °C signalling circuit
Irms rated making capacity
110 A AC power circuit NF C 63-110
110 A AC power circuit IEC 60947
110 A AC signalling circuit IEC 60947
rated breaking capacity
110 A 415 V IEC 60947
110 A 440 V IEC 60947
80 A 500 V IEC 60947
110 A 220...230 V IEC 60947
110 A 380...400 V IEC 60947
70 A 660...690 V IEC 60947
[Icw] rated short-time withstand current
90 A 50 °C - 1 s power circuit
85 A 50 °C - 5 s power circuit
80 A 50 °C - 10 s power circuit
60 A 50 °C - 30 s power circuit
45 A 50 °C - 1 min power circuit
40 A 50 °C - 3 min power circuit
80 A - 1 s signalling circuit
90 A - 500 ms signalling circuit
110 A - 100 ms signalling circuit
20 A 50 °C - >= 15 min power circuit
associated fuse rating
25 A gG <= 440 V power circuit
25 A aM power circuit
10 A gG signalling circuit IEC 60947
10 A gG signalling circuit VDE 0660
average impedance
3 mOhm - Ith 20 A 50 Hz power circuit
[Ui] rated insulation voltage
Power circuit 600 V UL 508
Power circuit 690 V IEC 60947-4-1
Signalling circuit 690 V IEC 60947-4-1
Signalling circuit 690 V IEC 60947-5-1
Signalling circuit 600 V UL 508
Power circuit 600 V CSA C22.2 No 14
Signalling circuit 600 V CSA C22.2 No 14
electrical durability
0,18 Mcycles 20 A AC-1 <= 440 V
1,3 Mcycles 9 A AC-3 <= 440 V
interlocking type
Mechanical
mounting support
Plate
Rail
standards
IEC 60947
VDE 0660
NF C 63-110
BS 5424
product certifications
UL
CSA
connections - terminals
screw clamp terminals 1 1,5…4 mm²solid
screw clamp terminals 1 0,75…4 mm²flexible without cable end
screw clamp terminals 1 0,34…2,5 mm²flexible with cable end
screw clamp terminals 2 1,5…4 mm²solid
screw clamp terminals 2 0,75…4 mm²flexible without cable end
screw clamp terminals 2 0,34…1,5 mm²flexible with cable end
tightening torque
1,3 N.m screw clamp terminals Philips No 2
1,3 N.m screw clamp terminals flat Ø 6 mm
operating time
10...20 ms coil energisation and NO closing
10...20 ms coil de-energisation and NO opening
safety reliability level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability
5 Mcycles
maximum operating rate
3600 cyc/h
Complementary
control circuit voltage limits
Operational 0.8...1.15 Uc 50 °C)
Drop-out 0.2...0.75 Uc 50 °C)
inrush power in VA
30 VA 20 °C)
hold-in power consumption in VA
4,5 VA 20 °C)
heat dissipation
1,3 W
auxiliary contacts type
Instantaneous 1 NC
signalling circuit frequency
<= 400 Hz
minimum switching current
5 mA signalling circuit
minimum switching voltage
17 V signalling circuit
non overlap distance
0,5 mm
insulation resistance
> 10 MOhm signalling circuit
Environment
IP degree of protection
IP20 VDE 0106
protective treatment
TC IEC 60068
TC DIN 50016
ambient air temperature for operation
-25…50 °C
ambient air temperature for storage
-50…80 °C
operating altitude
2000 m without
flame retardance
V1 UL 94
Requirement 2 NF F 16-101
Requirement 2 NF F 16-102
mechanical robustness
Shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27
Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27
Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27
Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27
Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27
Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27
Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6
Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
height
58 mm
width
90 mm
depth
57 mm
net weight
0,39 kg
