Details
Müüdavad tooted
| range | ClimaSys | |
|---|---|---|

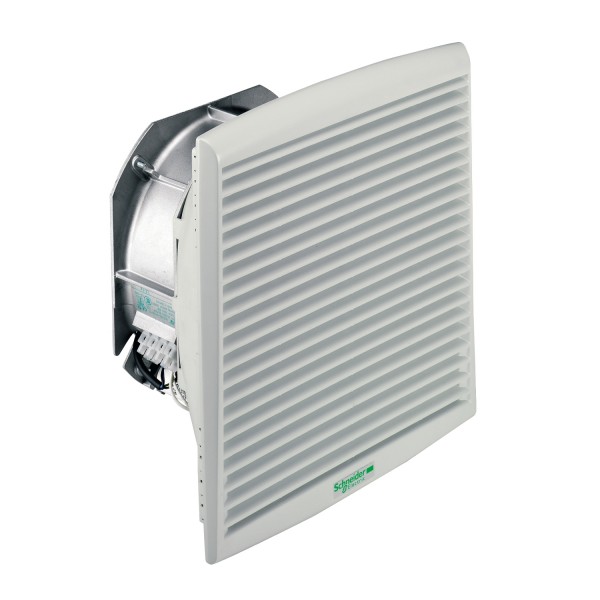

| product name | ClimaSys CV | |
| product or component type | Fan | |
| Type of filter | Standard | |
| Flow rate | Free flow rate with standard filter 803 m3/h 60 HzFree flow rate with standard filter 931 m3/h 50 Hz | |
| [Us] rated supply voltage | 396...466 V | |
| input voltage | 400 V 50/60 Hz |
| Absorbed power | 126 W 50 Hz126 W 60 Hz | |
|---|---|---|
| [In] rated current | 0,226 A 50 Hz0,232 A 60 Hz | |
| Noise level < at | 75…77 dB | |
| bearing type | Ball | |
| height | External 336 mm | |
| width | External 316 mm | |
| depth | External 162 mm | |
| cut-out dimensions | 291 x 291 mm | |
| net weight | 4,1 kg | |
| material | Outlet grille injected thermoplastic (ASA PC) | |
| colour | Outlet grille grey RAL 7035) | |
| ambient air temperature for operation | -15…60 °C | |
| ambient air temperature for storage | -40…70 °C | |
| maximum pressure | 170 Pa flow rate 0 m³/h | |
| connections - terminals | Terminal block | |
| IP degree of protection | IP54 | |
| device composition | 1 axial motor2 protective grille on the front and rear surfaces1 filter front of axial motor1 outlet grille front1 cut-out template | |
| condition of use | Outside temperature must be 5 °C lower than inside temperatureOverfrequent filter replacement should be avoidedFlow rates depends on the work point, see ProClima softwareFilter must be cleaned and replaced regularlySurrounding environment must be relatively clean |
| REACh-määrus | ||
|---|---|---|
| Ilma SVHC REACh-ta | Jah | |
| ELi RoHS direktiiv | Vastavus ELi RoHS deklaratsioon | |
| Mürgiste raskemetallideta | Jah | |
| Elavhõbedavaba | Jah | |
| RoHS eranditeave | ||
| Hiina EoHS regulatsioon | Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri) |
| Garantii | 18 months |
|---|
