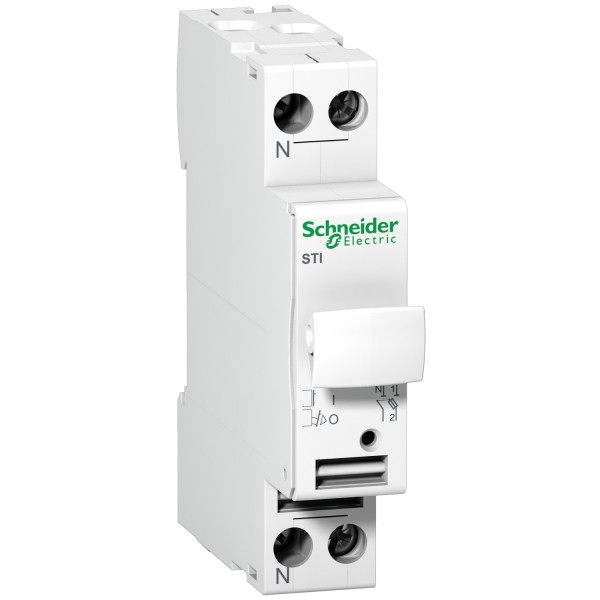

Acti 9 - kaitsmelüliti STI - 1-pooluseline + N - 25 A - kaitsme jaoks 10,3 x 38 mm - Sulavkaitsmed - Kilbitarvikud

Details

Complementary
[In] rated current	2 A 4 A 6 A 10 A 16 A 20 A 25 A
fuse curve	AM GG
fuse size	10.3 x 38 mm
[Ue] rated operational voltage	500 V AC
[Ui] rated insulation voltage	500 V AC 50/60 Hz
mounting mode	Clip-on
mounting support	DIN rail
9 mm pitches	2
height	81 mm
width	18 mm
depth	75 mm
colour	White
connections - terminals	Screw clamp terminals1 cable(s) 0.75…10 mm² rigid Screw clamp terminals1 cable(s) 0.5…6 mm² flexible Screw clamp terminals2 cable(s) 0.75…4 mm² rigid Screw clamp terminals2 cable(s) 0.5…6 mm² flexible
wire stripping length	12 mm
tightening torque	2 N.m

Environment
standards	IEC 60269-1/2 IEC EN 60947-3
IP degree of protection	IP20
pollution degree	3
ambient air temperature for operation	-20…60 °C
ambient air temperature for storage	-40…80 °C

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
