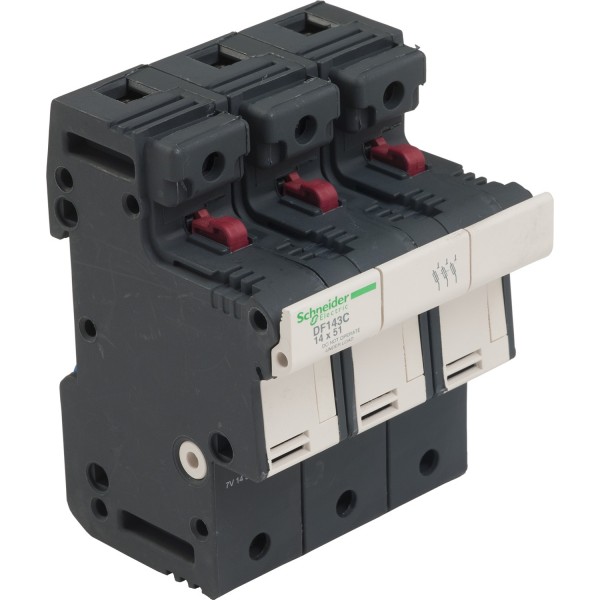

Kaitsmekandur TeSys DF, 3P 50A, kaitsme suurus 14x51 mm

Ülevaaded: 0

Tootekood: DF143C

Quick Overview

Saadavus: Tellimisel

20,24 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys DF
product or component type
Fuse carrier
device short name
DF14
product compatibility
DF3EA fuse cartridge striker
DF3EN fuse cartridge striker
DF14AM auxiliary contact block
poles description
3P
fuse size
14 x 51 mm
fuse type
, aM
, gG
control type
Toggle
[Ue] rated operational voltage
690 V AC
690 V DC
[Ie] rated operational current
50 A
[Ui] rated insulation voltage
690 V AC
[Uimp] rated impulse withstand voltage
8 kV
[Ipk] rated peak withstand current
15 kA with tubular links conforming to IEC 60269-1
short-circuit withstand
120 kA 400 V conforming to IEC 60947-3
120 kA 500 V conforming to IEC 60947-3
80 kA 690 V conforming to IEC 60947-3
Complementary
standards
EN/IEC 60947-3
EN/IEC 60269-2
UL 4248-1
CSA C22.2 No 4248-1
product certifications
IEC
UL recognized
CSA
EAC
mounting support
35 mm symmetrical DIN rail
mounting position
Vertical (tolerance: +/- 23°)
connections - terminals
Screw clamp terminals 1 cable(s) 2.5…25 mm²rigid
Screw clamp terminals 2 cable(s) 2.5…10 mm²rigid
Screw clamp terminals 1 cable(s) 2.5…25 mm²flexible with or without
Screw clamp terminals 2 cable(s) 2.5…10 mm²flexible with or without
tightening torque
3.5 N.m
height
110.8 mm
width
79 mm
depth
76.5 mm
net weight
0.420 kg
quantity per set
Set of 2
Environment
ambient air temperature for storage
-40…80 °C
ambient air temperature for operation
-20…60 °C with derating above 20°C
IP degree of protection
IP20 conforming to IEC 60529
protective treatment
TH
fire resistance
960 °C conforming to IEC 60695-2-1
compatibility code
DF14
Offer Sustainability
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
