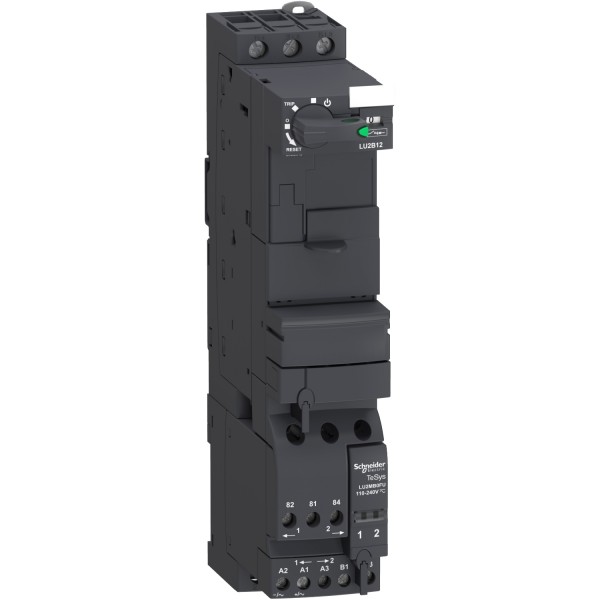

Tagurdustoitealus, TeSys U, 3P, 12A / 690V, mähis 110-240V AC / DC

Ülevaaded: 0

Tootekood: LU2B12FU

Quick Overview

Saadavus: Tellimisel

160,34 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys U
device short name
LU2B
product or component type
Reversing power base
device application
Motor control
Motor protection
product compatibility
Control unit LUC.X6FU
Control unit LUC.1XFU
Control unit LUC.05FU
Control unit LUC.12FU
poles description
3P
suitability for isolation
Yes
[Ue] rated operational voltage
690 V AC power circuit
network frequency
40...60 Hz
[Ith] conventional free air thermal current
12 A
[Ie] rated operational current
12 A <= 440 V
12 A 500 V
9 A 690 V
utilisation category
AC-41
AC-43
AC-44
[Ics] rated service breaking capacity
50 kA 230 V
50 kA 440 V
10 kA 500 V
4 kA 690 V
auxiliary contact composition
1 NO + 1 NC
auxiliary contacts type
Linked contacts 1 NO + 1 NC) IEC 60947-4-1
Mirror contact 1 NC) IEC 60947-1
[Uc] control circuit voltage
110...240 V AC 50/60 Hz
110...220 V DC
control circuit voltage limits
55 V DC drop-out
55 V AC drop-out
88...242 V DC in operation
88...264 V AC in operation
Complementary
typical current consumption
1000 mA 110...220 V DC I maximum while closing
1000 mA 110...240 V AC I maximum while closing
heat dissipation
2 W control circuit with LUCA, LUCB, LUCC, LUCD
1,7 W control circuit with LUCM
inrush restraint duration
25 ms AC 50/60 Hz
15 ms DC
safety reliability level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
operating time
150 ms with change of direction power circuit
35 ms opening control circuit
75 ms without change of direction power circuit
50 ms closing control circuit
mechanical durability
15 Mcycles
maximum operating rate
3600 cyc/h
product certifications
CE
UL
CSA
CCC
EAC
ASEFA
ATEX
Marine
standards
EN 60947-6-2
IEC 60947-6-2
UL 60947-4-1, with phase barrier
CSA C22.2 No 60947-4-1, with phase barrier
[Ui] rated insulation voltage
690 V IEC 60947-6-2 3)
600 V UL 60947-4-1
600 V CSA C22.2 No 60947-4-1
[Uimp] rated impulse withstand voltage
6 kVIEC 60947-6-2
safe separation of circuit
400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N
400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N
fixing mode
Clipped DIN rail)
Screw-fixed plate)
connections - terminals
Control circuit screw clamp terminals 1 0,34…1,5 mm² flexible with cable end
Control circuit screw clamp terminals 1 0,75…1,5 mm² flexible without cable end
Control circuit screw clamp terminals 1 0,75…1,5 mm² rigid
Control circuit screw clamp terminals 2 0,34…1,5 mm² flexible with cable end
Control circuit screw clamp terminals 2 0,75…1,5 mm² flexible without cable end
Control circuit screw clamp terminals 2 0,75…1,5 mm² rigid
Power circuit screw clamp terminals 1 1…10 mm² rigid
Power circuit screw clamp terminals 1 1…6 mm² flexible with cable end
Power circuit screw clamp terminals 1 2,5…10 mm² flexible without cable end
Power circuit screw clamp terminals 2 1…6 mm² flexible with cable end
Power circuit screw clamp terminals 2 1…6 mm² rigid
Power circuit screw clamp terminals 2 1,5…6 mm² flexible without cable end
tightening torque
Control circuit 0,8…1,2 N.m flat 5 mm
Control circuit 0,8…1,2 N.m Philips no 1 5 mm
Power circuit 1,9…2,5 N.m flat 6 mm
Power circuit 1,9…2,5 N.m Philips No 2 6 mm
width
45 mm
height
224 mm
depth
126 mm
net weight
1,27 kg
compatibility code
LU2B
Environment
IP degree of protection
IP20 IEC 60947-1 front panel and wired terminals)
IP20 IEC 60947-1 other faces)
IP40 IEC 60947-1 front panel outside connection zone)
protective treatment
TH IEC 60068
ambient air temperature for operation
-25…60 °C with LUCM
-25…70 °C with LUCA, LUCB, LUCC, LUCD
ambient air temperature for storage
-40…85 °C
fire resistance
960 °C parts supporting live components IEC 60695-2-12
650 °C IEC 60695-2-12
operating altitude
2000 m
shock resistance
10 gn power poles open IEC 60068-2-27
15 gn power poles closed IEC 60068-2-27
vibration resistance
2 gn 5…300 Hz) power poles open IEC 60068-2-27
4 gn 5…300 Hz) power poles closed IEC 60068-2-27
resistance to electrostatic discharge
8 kV 3 in open air IEC 61000-4-2
8 kV 4 on contact IEC 61000-4-2
resistance to radiated fields
10 V/m 3 IEC 61000-4-3
resistance to fast transients
2 kV 3 serial link IEC 61000-4-4
4 kV 4 all circuits except for serial link IEC 61000-4-4
non-dissipating shock wave
1 kV serial mode IEC 60947-6-2
2 kV common mode IEC 60947-6-2
immunity to radioelectric fields
10 V IEC 61000-4-6
immunity to microbreaks
3 ms control circuit
immunity to voltage dips
70 % / 500 ms IEC 61000-4-11
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
