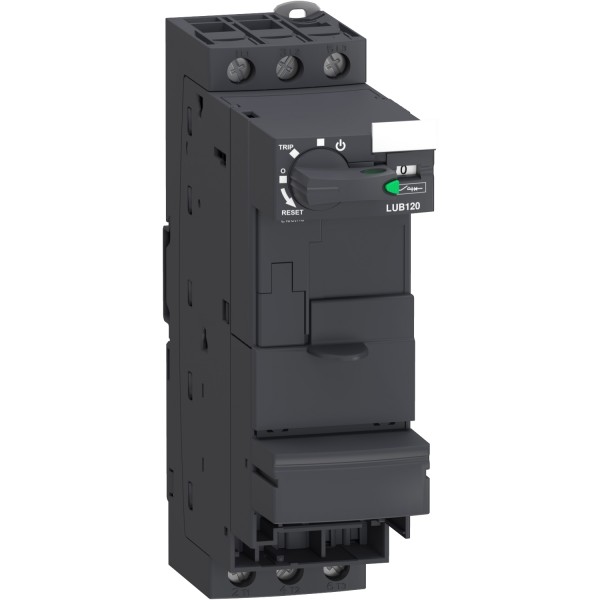

Sidemoodul CANopen - TeSys U jaoks - 24 V DC

Previous

Täiustatud juhtplokk, TeSys U, 0,15-0,6A, 3P mootorid, kaitse ja diagnostika, klass 20, spiraal 24V DC

Täiustatud toitealus, TeSys U, 3P, 12A / 690V

Ülevaaded: 0

Tootekood: LUB120

Quick Overview

Saadavus: Tellimisel

41,94 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys U
device short name
LUB
product or component type
Non reversing power base
device application
Motor control
Motor protection
poles description
3P
suitability for isolation
Yes
[Ue] rated operational voltage
690 V AC power circuit
network frequency
40...60 Hz
[Ith] conventional free air thermal current
12 A
[Ie] rated operational current
12 A <= 440 V
12 A 500 V
9 A 690 V
utilisation category
AC-41
AC-43
AC-44
[Ics] rated service breaking capacity
50 kA 230 V
50 kA 440 V
10 kA 500 V
4 kA 690 V
auxiliary contact composition
1 NO + 1 NC
auxiliary contacts type
Linked contacts 1 NO + 1 NC) IEC 60947-4-1
Mirror contact 1 NC) IEC 60947-1
[Uc] control circuit voltage
24 V AC 50/60 Hz
24 V DC
48...72 V AC 50/60 Hz
48...72 V DC
110...240 V AC 50/60 Hz
110...220 V DC
Complementary
typical current consumption
130 mA 24 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD
140 mA 24 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD
150 mA 24 V DC I maximum while closing with LUCM
280 mA 110...220 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD
280 mA 110...240 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD
280 mA 48...72 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD
280 mA 48...72 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD
35 mA 110...220 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD
35 mA 110...240 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD
35 mA 48...72 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD
35 mA 48...72 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD
60 mA 24 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD
70 mA 24 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD
70 mA 24 V DC I rms sealed with LUCM
heat dissipation
2 W control circuit with LUCA, LUCB, LUCC, LUCD
1,7 W control circuit with LUCM
safety reliability level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
operating time
35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit
50 ms >= 72 V closing with LUCA, LUCB, LUCC, LUCD control circuit
60 ms 48 V closing with LUCA, LUCB, LUCC, LUCD control circuit
70 ms 24 V closing with LUCA, LUCB, LUCC, LUCD control circuit
75 ms closing with LUCM control circuit
mechanical durability
15 Mcycles
maximum operating rate
3600 cyc/h
product certifications
CE
UL
CSA
CCC
EAC
ASEFA
ATEX
Marine
standards
EN 60947-6-2
IEC 60947-6-2
UL 60947-4-1, with phase barrier
CSA C22.2 No 60947-4-1, with phase barrier
[Ui] rated insulation voltage
690 V IEC 60947-6-2 3)
600 V UL 60947-4-1
600 V CSA C22.2 No 60947-4-1
[Uimp] rated impulse withstand voltage
6 kVIEC 60947-6-2
safe separation of circuit
400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N
400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N
fixing mode
Clipped DIN rail)
Screw-fixed plate)
connections - terminals
Power circuit screw clamp terminals 1 1…10 mm² rigid
Power circuit screw clamp terminals 1 1…6 mm² flexible with cable end
Power circuit screw clamp terminals 1 2,5…10 mm² flexible without cable end
Power circuit screw clamp terminals 2 1…6 mm² flexible with cable end
Power circuit screw clamp terminals 2 1…6 mm² rigid
Power circuit screw clamp terminals 2 1,5…6 mm² flexible without cable end
Control circuit without connection
tightening torque
Control circuit 0,8…1,2 N.m flat 5 mm
Control circuit 0,8…1,2 N.m Philips no 1 5 mm
Power circuit 1,9…2,5 N.m flat 6 mm
Power circuit 1,9…2,5 N.m Philips No 2 6 mm
width
45 mm
height
154 mm
depth
126 mm
net weight
0,865 kg
compatibility code
LUB
Environment
IP degree of protection
IP20 IEC 60947-1 front panel and wired terminals)
IP20 IEC 60947-1 other faces)
IP40 IEC 60947-1 front panel outside connection zone)
protective treatment
TH IEC 60068
ambient air temperature for operation
-25…60 °C with LUCM
-25…70 °C with LUCA, LUCB, LUCC, LUCD
ambient air temperature for storage
-40…85 °C
fire resistance
960 °C parts supporting live components IEC 60695-2-12
650 °C IEC 60695-2-12
operating altitude
2000 m
shock resistance
10 gn power poles open IEC 60068-2-27
15 gn power poles closed IEC 60068-2-27
vibration resistance
2 gn 5…300 Hz) power poles open IEC 60068-2-27
4 gn 5…300 Hz) power poles closed IEC 60068-2-27
resistance to electrostatic discharge
8 kV 3 in open air IEC 61000-4-2
8 kV 4 on contact IEC 61000-4-2
resistance to radiated fields
10 V/m 3 IEC 61000-4-3
resistance to fast transients
2 kV 3 serial link IEC 61000-4-4
4 kV 4 all circuits except for serial link IEC 61000-4-4
non-dissipating shock wave
1 kV serial mode 24...240 V AC IEC 60947-6-2
1 kV serial mode 48...220 V DC IEC 60947-6-2
2 kV common mode 24...240 V AC IEC 60947-6-2
2 kV common mode 48...220 V DC IEC 60947-6-2
immunity to radioelectric fields
10 V IEC 61000-4-6
immunity to microbreaks
3 ms control circuit
immunity to voltage dips
70 % / 500 ms IEC 61000-4-11
