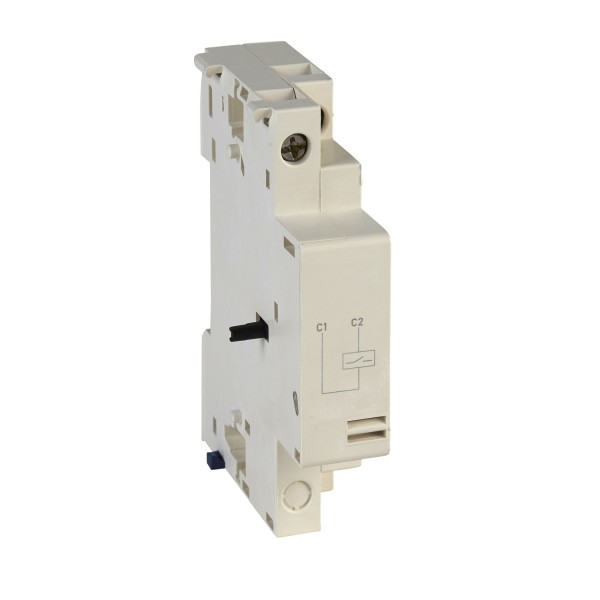

TeSys GV2 & GV3 - manööverdamine - 200 V AC 50 Hz - Mootorikaitse & juhtimine - Kilbitarvikud

Details

Complementary
product compatibility	GV2L GV2P GV3L GV2ME GV3P GV2LE
[Uc] control circuit voltage	200 V AC 50 Hz 200...220 V AC 60 Hz
control circuit voltage limits	0.7...1.1 Un
[Ui] rated insulation voltage	600 V AC UL 508 690 V AC IEC 60947-1 600 V AC CSA C22.2 No 14
threshold tripping voltage	0.75...0.2 Un
inrush power in VA	14 VA AC
inrush power in W	10,5 W DC
hold-in power consumption in VA	5 VA AC
hold-in power consumption in W	1,6 W DC
operating time	10...15 ms IEC 60947-1
on-load factor	100 %
connections - terminals	screw clamp terminals 1 0,75…2,5 mm²flexible without cable end screw clamp terminals 1 1…2,5 mm²solid screw clamp terminals 2 0,75…2,5 mm²flexible without cable end screw clamp terminals 1 0,75…1,5 mm²flexible with cable end screw clamp terminals 2 0,75…1,5 mm²flexible with cable end
tightening torque	< 1.4 N.m screw clamp terminals
mechanical durability	10000 cycles with GV3P and GV3L 30000 cycles with GV2ME and GV2P
quantity per set	Set of 10
net weight	0,105 kg

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
