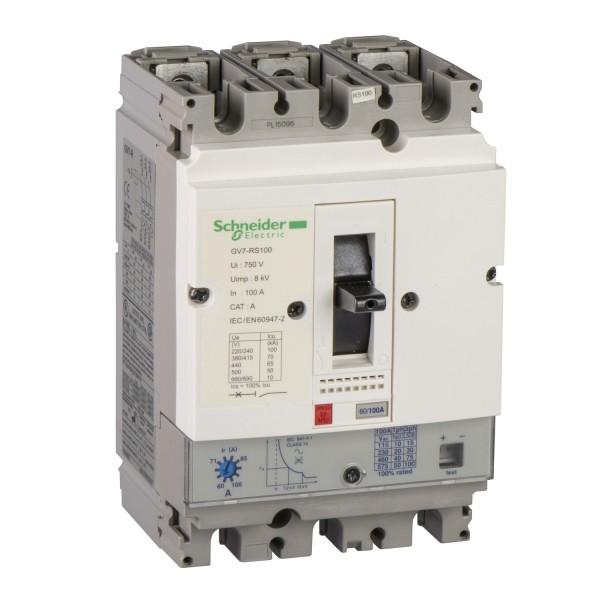

TeSys GV7 - kaitselüliti - 3P - AC-3 - 60 ... 100 A - termomagnetiline - Mootorikaitse & juhtimine - Kilbitarvikud

Details

Main
range	TeSys
product name	TeSys GV7
device short name	GV7R
device application	Motor
poles description	3P
network type	AC
utilisation category	AC-3 conforming to IEC 60947-4-1
network frequency	50/60 Hz conforming to IEC 60947-4-1
breaking capacity	50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity	100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
thermal protection adjustment range	60…100 A
trip unit technology	Thermal-magnetic

Complementary
mounting mode	By screws By clips
mounting support	Kit for fixing the switchgear Rail Flush Panel mounting
mounting position	Vertical
motor power kW	45 kW at 400...415 V AC 50/60 Hz 75 kW at 660...690 V AC 50/60 Hz
control type	Rocker lever
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage	750 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] conventional free air thermal current	100 A conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage	IEC 60947-2 8 kV
power dissipation per pole	5 W
power dissipation per pole	5 W
mechanical durability	50000 cycles
electrical durability	30000 cycles for AC-3 at 440 V In 50000 cycles for AC-3 at 440 V In/2
maximum operating rate	25 cyc/h
rated duty	Continuous conforming to IEC 60947-4-1
connection pitch	35 mm without spreaders 45 mm with spreaders
connections - terminals	Bars Cable with lug - external diameter: 10 mm Screw Bare cable connectors 1.5…95 mm²
tightening torque	10 N.m on screw M6 screw type 15 N.m on bare cable connectors for cable 1.5…95 mm²
mechanical robustness	Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations: 2.5 Gn, 0...25 Hz conforming to IEC 60068-2-6
suitability for isolation	Yes conforming to IEC 60947-1
phase failure sensitivity	Yes conforming to IEC 60947-4-1 § 7-2-1-5-2
height	161 mm
width	105 mm
depth	111 mm
net weight	2.04 kg

Environment
standards	NF C 63-120 EN/IEC 60947-2 NF C 63-650 VDE 0113 EN/IEC 60947-1 VDE 0660 NF C 79-130 EN/IEC 60947-4-1
product certifications	DNV UL
protective treatment	TC
IP degree of protection	IP405 conforming to IEC 60529 (with terminal shrouds)
pollution degree	3
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-55…95 °C
fire resistance	960 °C conforming to IEC 60695-2-1
operating altitude	2000 m

Offer Sustainability
EU RoHS Directive	Not applicable, out of EU RoHS legal scope
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
