Details
Müüdavad tooted

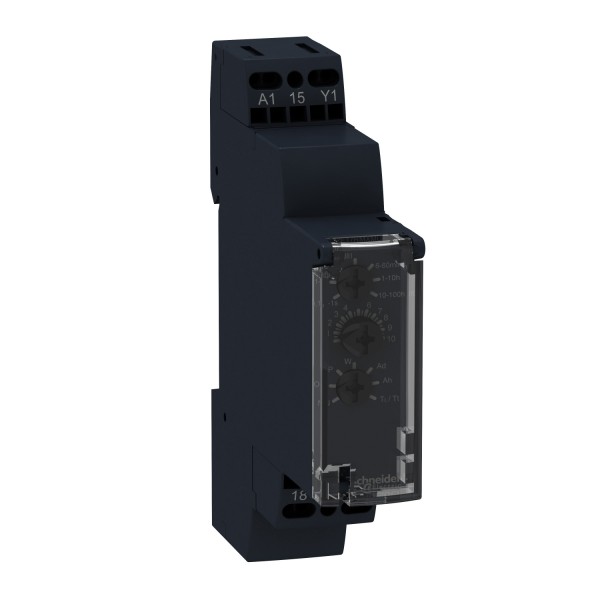

| range of product | Zelio Time | |
|---|---|---|
| product or component type | Modular timing relay | |
| discrete output type | Relay | |
| width | 17,5 mm | |
| device short name | RE17R | |
| time delay type | AhTlNTtAdPtOWP | |
| time delay range | 6...60 s1...10 min0.1...1 s1...10 h1...10 s6...60 min10...100 h | |
| nominal output current | 8 A |
| contacts type and composition | 1 C/O | |
|---|---|---|
| contacts material | Cadmium free | |
| height | 90 mm | |
| depth | 72 mm | |
| control type | Selector switch front panel | |
| [Us] rated supply voltage | 24...240 V AC 50/60 Hz24 V DC | |
| voltage range | 0.85...1.1 Us | |
| supply frequency | 50...60 Hz +/- 5 % | |
| release of input voltage | 10 V | |
| connections - terminals | Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable endScrew terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable endScrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable endScrew terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end | |
| tightening torque | 0,6…1 N.m IEC 60947-1 | |
| housing material | Self-extinguishing | |
| repeat accuracy | +/- 0.5 % IEC 61812-1 | |
| temperature drift | +/- 0.05 %/°C | |
| voltage drift | +/- 0.2 %/V | |
| setting accuracy of time delay | +/- 10 % of full scale 25 °C IEC 61812-1 | |
| control signal pulse width | 100 ms with load in parallel typical30 ms typical | |
| insulation resistance | 100 MOhm 500 V DC IEC 60664-1 | |
| reset time | 120 ms on de-energisation typical | |
| on-load factor | 100 % | |
| power consumption in VA | 0…32 VA 240 V AC | |
| maximum power consumption in W | 0,6 W 24 V DC | |
| minimum switching current | 10 mA 5 V DC | |
| maximum switching current | 8 A AC/DC | |
| maximum switching voltage | 250 V AC | |
| breaking capacity | 2000 VA | |
| operating frequency | 10 Hz | |
| electrical durability | 100000 cycles resistive 8 A 250 V AC | |
| mechanical durability | 10000000 cycles | |
| dielectric strength | 2,5 kV 1 mA/1 minute 50 Hz IEC 61812-1 | |
| [Uimp] rated impulse withstand voltage | 5 kV 1.2/50 µs | |
| power on delay | 100 ms | |
| marking | CE | |
| creepage distance | 4 kV/3 IEC 60664-1 | |
| safety reliability data | MTTFd = 296.8 yearsB10d = 270000 | |
| mounting position | Any position in relation to normal vertical mounting plane | |
| mounting support | 35 mm DIN rail EN/IEC 60715 | |
| local signalling | LED indicator on steady: relay energised, no timing in progressLED indicator 80 % ON and 20 % OFF flashing: timing in progressLED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L) | |
| net weight | 0,07 kg | |
| time delay type | Ad, Ah, N, O, P, Pt, TI, Tt, W | |
| functionality | Multifunction | |
| compatibility code | RE17 |
| immunity to microbreaks | 20 ms | |
|---|---|---|
| standards | 2006/95/EC2004/108/ECEN 61000-6-1EN 61000-6-4EN 61000-6-2EN 61000-6-3IEC 61812-1 | |
| product certifications | CULusGLCSA | |
| ambient air temperature for storage | -30…60 °C | |
| ambient air temperature for operation | -20…60 °C | |
| IP degree of protection | IP20 IEC 60529 terminal block)IP40 IEC 60529 housing)IP50 IEC 60529 front panel) | |
| vibration resistance | 20 m/s² 10…150 Hz)IEC 60068-2-6 | |
| shock resistance | 15 gn 11 ms IEC 60068-2-27 | |
| relative humidity | 93 % without condensation IEC 60068-2-30 | |
| electromagnetic compatibility | Electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2Electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2Susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3Electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4Electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-41.2/50 µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-51.2/50 µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5Conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6Voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11Voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11Conducted and radiated emissionsclass B EN 55022 |
| Jätkusuutliku pakkumise olek | Green Premium toode | |
|---|---|---|
| REACh-määrus | ||
| ELi RoHS direktiiv | Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon | |
| Elavhõbedavaba | Jah | |
| RoHS eranditeave | ||
| Hiina EoHS regulatsioon | ||
| Keskkonnaalane avaldus | ||
| Ringlusprofiil |
