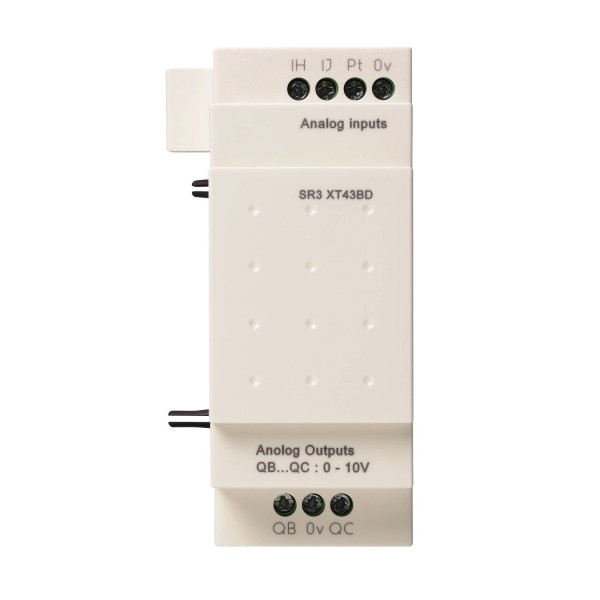

Analoog I/O pikendusmoodul | 4 I/O, 24V DC, Zelio Logicu jaoks

Ülevaaded: 0

Tootekood: SR3XT43BD

Quick Overview

Saadavus: Tellimisel

107,35 € (ilma KM-ta)

Details

Main
range of product
Zelio Logic
product or component type
Analogue I/O extension module
Complementary
analogue input number
2
analogue input type
Common mode
analogue input range
0...10 V
0...20 mA
-25...125 °C
temperature probe type
Pt 100, 3-wire IEC 751
maximum permissible voltage
30 V analogue input circuit
[Imp] maximum permanent current
30 mA analogue input circuit
analogue input resolution
10 bits on the input range
input impedance
18 kOhm 0...10 V analogue input circuit
247 Ohm 0...20 mA analogue input circuit
analogue output number
2
analogue output range
0...10 V
analogue output resolution
10 bits on the output range
load type
Resistive analogue output
maximum load current
10 mA analogue output
short-circuit protection
With analogue output
LSB value
0.15 °C, - 25...125 °C analogue input circuit
20 µA, 0...20 mA analogue input circuit
9.8 mV, 0...10 V analogue input circuit
9.8 mV, 0...10 V analogue output
conversion time
Smart relay cycle time analogue input circuit
Smart relay cycle time analogue output
conversion error
+/- 1 % of the full scale value 0...10 V 25 °C)analogue output
+/- 1 % of the full scale value 0...10 V 55 °C)analogue output
+/- 1 % 0...10 V 25 °C)analogue input circuit
+/- 1 % 0...10 V 55 °C)analogue input circuit
+/- 1 % 0...20 mA 25 °C)analogue input circuit
+/- 1 % 0...20 mA 55 °C)analogue input circuit
+/- 1.5 °C - 25...125 °C 25 °C)analogue input circuit
+/- 1.5 °C - 25...125 °C 55 °C)analogue input circuit
repeat accuracy
< +/- 0.3 °C - 25...125 °C 25 °C analogue input circuit
<= +/- 1 % 0...10 V 25 °C analogue input circuit
<= +/- 1 % 0...10 V 55 °C analogue output
<= +/- 1 % 0...20 mA 25 °C analogue input circuit
operating distance
10 m with screened cable analogue input circuit
10 m with screened cable analogue output
reverse polarity protection
Analogue input circuit with
connections - terminals
Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) semi-solid
Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) solid
Screw terminals, 2 x 0.25...2 x 1.5 mm² AWG 23...AWG 16) solid
Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
Screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
tightening torque
0,5 N.m
net weight
0,11 kg
Environment
product certifications
GOST
UL
C-Tick
CSA
standards
EN/IEC 61000-4-12
EN/IEC 61000-4-5
EN/IEC 61000-4-3
EN/IEC 61000-4-4 level 3
EN/IEC 61000-4-6 level 3
EN/IEC 61000-4-2 level 3
EN/IEC 60068-2-6 Fc
EN/IEC 61000-4-11
EN/IEC 60068-2-27 Ea
IP degree of protection
IP20 IEC 60529 terminal block)
IP40 IEC 60529 front panel)
environmental characteristic
EMC directive EN/IEC 61000-6-2
EMC directive EN/IEC 61000-6-3
EMC directive EN/IEC 61000-6-4
EMC directive EN/IEC 61131-2 zone B
Low voltage directive EN/IEC 61131-2
disturbance radiated/conducted
Class B EN 55022-11 group 1
pollution degree
2 EN/IEC 61131-2
ambient air temperature for operation
-20…40 °C IEC 60068-2-1 and IEC 60068-2-2
-20…55 °C IEC 60068-2-1 and IEC 60068-2-2
ambient air temperature for storage
-40…70 °C
operating altitude
2000 m
maximum altitude transport
3048 m
relative humidity
95 % without condensation or dripping water
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
