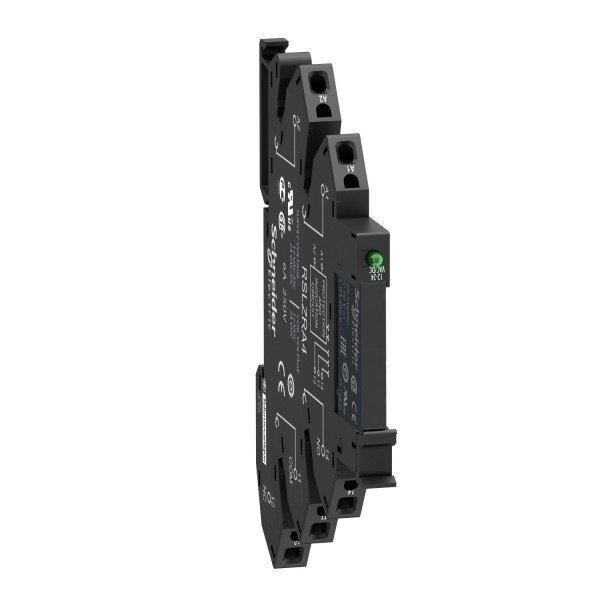

Eeltöödeldud õhuke liideserelee | 6A, 230V AC, 1CO, LED-iga, kaitsemoodul, vedruklemm - Releed - Kilbitarvikud

Details

Main
range of product	Zelio Relay
series name	Interface relay
product or component type	Plug-in relay
device short name	RSL
contacts type and composition	1 C/O
contact operation	Standard
[Uc] control circuit voltage	60 V DC
[Ithe] conventional enclosed thermal current	6 A -40…55 °C
status LED	With
shape of pin	Flat (PCB type)

Complementary
fixing mode	Plastic compression spring
average resistance	20500 Ohm DC 23 °C +/- 10 %
[Ui] rated insulation voltage	250 V EN/IEC 277 V cUL
[Uimp] rated impulse withstand voltage	6 kV IEC
contacts material	Silver alloy (AgSnO2)
[Ie] rated operational current	6 A 1 C/O AC-1/DC-1)IEC/UL
minimum switching current	100 mA
maximum switching voltage	277 V
switching voltage	12 V
maximum switching capacity	1500 VA 150 W
minimum switching capacity	120 mW
operating rate	<= 72000 cycles/hour no-load <= 360 cycles/hour under load
mechanical durability	10000000 cycles
electrical durability	60000 cycles resistive, 6 A 250 V, AC-1
operating time	5 ms reset 12 ms
reset time	20 ms
marking	CE
protection category	RT III
test levels	Level A
operating position	Any position
height	78,6 mm
width	6,2 mm
depth	101 mm
terminals description ISO n°1	(A1-A2)CO (11-12-14)OC
sale per indivisible quantity	10
net weight	0,029 kg
load current	6 A 250 V AC 0.5 mm mounting distance
average coil consumption	0,17 W, DC
drop-out voltage threshold	>= 0.05 Uc
contact terminal arrangement	Separate
connections - terminals	Spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) flexible with cable end Spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) solid without cable end
tightening torque	10...40 N.m
safety reliability data	B10d = 60000
clamping force	10…40 N
control type	Without push-button
mounting support	35 mm symmetrical DIN rail
device presentation	Complete product

Environment
input voltage	230 V AC/DC 184...264.5 V)
dielectric strength	1000 V AC between contacts 4000 V AC between coil and contact
standards	CSA C22.2 No 14 EN/IEC 61810-1 UL 508
product certifications	GOST CSA UL
ambient air temperature for storage	-40…85 °C
vibration resistance	10 gn +/- 1 mm 10…150 Hz)10 cycles not operating EN/IEC 60068-2-6 5 gn +/- 1 mm 10…150 Hz)10 cycles in operation EN/IEC 60068-2-6
IP degree of protection	IP40 EN/IEC 60529
shock resistance	10 gn 11 ms) in operation EN/IEC 60068-2-27 5 gn 11 ms) not operating EN/IEC 60068-2-27
ambient air temperature for operation	-40…70 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
