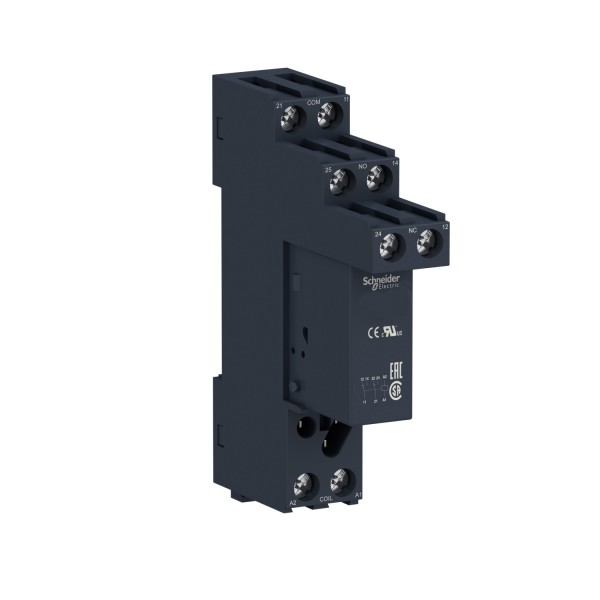

Liidese pistikrelee Zelio RSB | 8A, 24V AC, 2 CO, pistikupesaga - Releed - Kilbitarvikud

Details

Main
range of product	Zelio Relay
series name	Interface relay
product or component type	Plug-in relay
device short name	RSB
contacts type and composition	2 C/O
contact operation	Standard
[Uc] control circuit voltage	24 V AC
[Ithe] conventional enclosed thermal current	8 A -40…40 °C
status LED	Without
control type	Without push-button

Complementary
shape of pin	Flat
average coil resistance	400 Ohm AC 20 °C +/- 15 %
[Ue] rated operational voltage	19.2...26.4 V AC 50 Hz 20.4...26.4 V AC 60 Hz
[Ui] rated insulation voltage	400 V EN/IEC 60947
[Uimp] rated impulse withstand voltage	3,6 kV IEC 61000-4-5
contacts material	Silver alloy (Ag/Ni)
[Ie] rated operational current	4 A AC-1/DC-1) NC IEC 8 A AC-1/DC-1) NO IEC
minimum switching current	5 mA
maximum switching voltage	300 V DC 400 V AC
minimum switching voltage	5 V
maximum switching capacity	2000 VA AC 224 W DC
resistive rated load	8 A 250 V AC 8 A 28 V DC
minimum switching capacity	300 mW 5 mA
operating rate	<= 600 cycles/hour under load <= 72000 cycles/hour no-load
mechanical durability	30000000 cycles
electrical durability	100000 cycles, 8 A 250 V, AC-1 NO 100000 cycles, 4 A 250 V, AC-1 NC
operating time	10 ms between coil de-energisation and making of the Off-delay contact 12 ms between coil energisation and making of the On-delay contact
marking	CE
average coil consumption	0,75 VA AC 60 Hz
drop-out voltage threshold	>= 0.15 Uc AC
safety reliability data	B10d = 100000
protection category	RT I
operating position	Any position
sale per indivisible quantity	10
device presentation	Complete product

Environment
dielectric strength	1000 V AC between contacts 2500 V AC between poles 5000 V AC between coil and contact
standards	UL 508 EN/IEC 61810-1 CSA C22.2 No 14
product certifications	UL GOST CSA
ambient air temperature for storage	-40…85 °C
vibration resistance	+/- 1 mm 10…55 Hz)EN/IEC 60068-2-6
IP degree of protection	IP40 EN/IEC 60529
shock resistance	10 gn 11 ms) not operating EN/IEC 60068-2-27 5 gn 11 ms) in operation EN/IEC 60068-2-27
ambient air temperature for operation	-40…70 °C AC) -40…85 °C DC)

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
