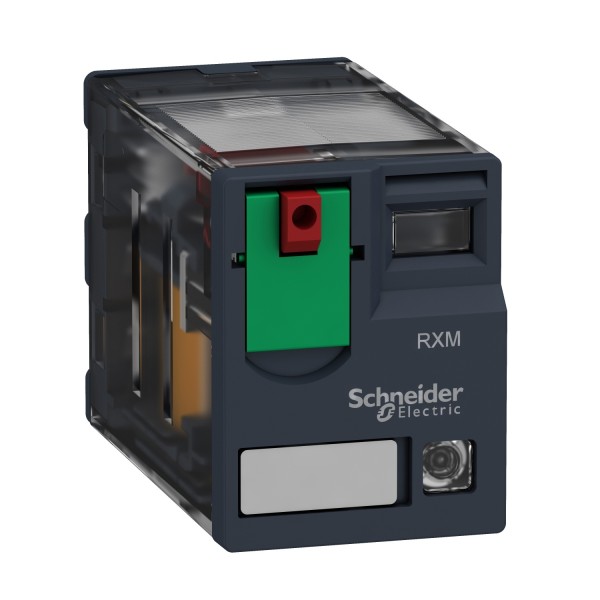

Miniatuurne pistikrelee | 10A, 230V AC, 3CO, LED-iga - Releed - Kilbitarvikud

Details

Main
range of product	Zelio Relay
series name	Miniature
product or component type	Plug-in relay
device short name	RXM
contacts type and composition	3 C/O
[Uc] control circuit voltage	230 V AC 50/60 Hz
[Ithe] conventional enclosed thermal current	10 A -40…55 °C
status LED	With
control type	Lockable test button
utilisation coefficient	20 %

Complementary
shape of pin	Flat
[Ui] rated insulation voltage	250 V IEC 300 V CSA 300 V UL
[Uimp] rated impulse withstand voltage	4 kV 1.2/50 µs
contacts material	AgNi
[Ie] rated operational current	10 A 28 V DC) NO IEC 10 A 250 V AC) NO IEC 5 A 28 V DC) NC IEC 5 A 250 V AC) NC IEC 10 A 30 V DC) UL 10 A 277 V AC) UL
maximum switching voltage	250 V IEC
resistive rated load	10 A 250 V AC 10 A 28 V DC
maximum switching capacity	2500 VA/280 W
minimum switching capacity	170 mW 10 mA, 17 V
operating rate	<= 1200 cycles/hour under load <= 18000 cycles/hour no-load
mechanical durability	10000000 cycles
electrical durability	100000 cycles resistive
average coil consumption in VA	1,2 60 Hz
average consumption	1,2 VA 60 Hz
drop-out voltage threshold	>= 0.15 Uc
operate time	20 ms
release time	20 ms
average coil resistance	15000 Ohm 20 °C +/- 15 %
rated operational voltage limits	184...253 V AC
safety reliability data	B10d = 100000
protection category	RT I
test levels	Level A
operating position	Any position
CAD overall height	82,8 mm
CAD overall depth	80,35 mm
net weight	0,096 kg
device presentation	Complete product

Environment
dielectric strength	1300 V AC between contacts micro disconnection 2000 V AC between coil and contact reinforced 2000 V AC between poles basic
product certifications	GOST Lloyd's REACH RoHS CSA CE UL
standards	CSA C22.2 No 14 EN/IEC 61810-1 UL 508
ambient air temperature for storage	-40…85 °C
ambient air temperature for operation	-40…55 °C
vibration resistance	3 gn +/- 1 mm 10…150 Hz)5 cycles in operation 5 gn +/- 1 mm 10…150 Hz)5 cycles not operating
IP degree of protection	IP40 EN/IEC 60529
shock resistance	10 gnin operation 30 gnnot operating
pollution degree	2

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
