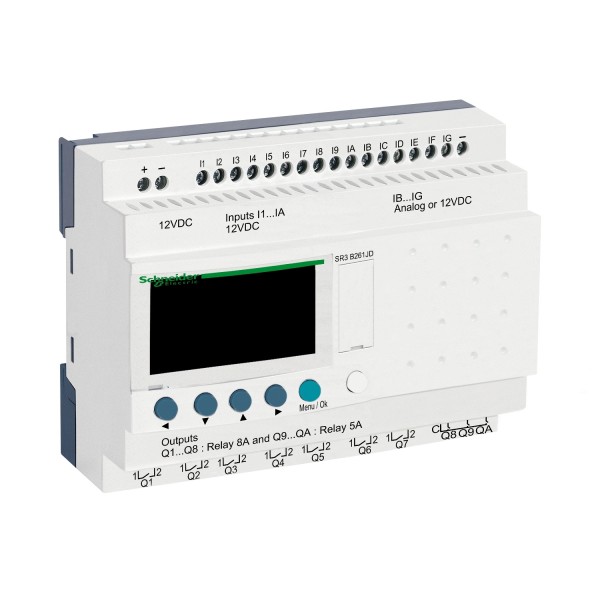

Moodulne nutirelee Zelio Logic | 26 I/O, 12V DC, kell, ekraan

Ülevaaded: 0

Tootekood: SR3B261JD

Quick Overview

Saadavus: Tellimisel

190,36 € (ilma KM-ta)

Details

Main
range of product
Zelio Logic
product or component type
Modular smart relay
Complementary
local display
With
number or control scheme lines
0…500 FBD
0…240 ladder
cycle time
6…90 ms
backup time
10 years 25 °C
clock drift
12 min/year 0…55 °C
6 s/month 25 °C
checks
Program memory on each power up
[Us] rated supply voltage
12 V
supply voltage limits
10,4…14,4 V
maximum supply current
250 mA without extension)
400 mA with extensions)
power dissipation in W
3 W without extension
5 W with extensions
reverse polarity protection
With
discrete input number
16 EN/IEC 61131-2 type 1
discrete input type
Resistive
discrete input voltage
12 V DC
discrete input current
4 mA
counting frequency
1 kHz discrete input
voltage state 1 guaranteed
>= 7 V IB...IG used as discrete input circuit
>= 5.6 V I1...IA and IH...IR discrete input circuit
voltage state 0 guaranteed
<= 3 V IB...IG used as discrete input circuit
<= 2.4 V I1...IA and IH...IR discrete input circuit
current state 1 guaranteed
>= 2 mA I1...IA and IH...IR discrete input circuit)
>= 0.5 mA IB...IG used as discrete input circuit)
current state 0 guaranteed
<= 0.2 mA IB...IG used as discrete input circuit)
<= 0.9 mA I1...IA and IH...IR discrete input circuit)
input compatibility
3-wire proximity sensors PNP discrete input
analogue input number
6
analogue input type
Common mode
analogue input range
0...12 V
0...10 V
maximum permissible voltage
14.4 V analogue input circuit
analogue input resolution
8 bits at maximum voltage
LSB value
39 mV analogue input circuit
conversion time
Smart relay cycle time analogue input circuit
conversion error
+/- 5 % 25 °C analogue input circuit
+/- 6.2 % 55 °C analogue input circuit
repeat accuracy
+/- 2 % 55 °C analogue input circuit
operating distance
10 m between stations, with screened cable (sensor not isolated) analogue input circuit
input impedance
14 kOhm IB...IG used as analogue input circuit
14 kOhm IB...IG used as discrete input circuit
2.7 kOhm I1...IA and IH...IR discrete input circuit
number of outputs
10 relay
output voltage limits
24...250 V AC relay output)
5...30 V DC relay output)
contacts type and composition
NO relay output
output thermal current
5 A for 2 outputs relay output
8 A for 8 outputs relay output
electrical durability
AC-12 500000 cycles 230 V, 1,5 A relay output EN/IEC 60947-5-1
AC-15 500000 cycles 230 V, 0,9 A relay output EN/IEC 60947-5-1
DC-12 500000 cycles 24 V, 1,5 A relay output EN/IEC 60947-5-1
DC-13 500000 cycles 24 V, 0,6 A relay output EN/IEC 60947-5-1
switching capacity in mA
>= 10 mA 12 V relay output)
operating rate in Hz
0,1 Hz at Ie)relay output
10 Hz no load)relay output
mechanical durability
10000000 cycles relay output
[Uimp] rated impulse withstand voltage
4 kV EN/IEC 60947-1 and EN/IEC 60664-1
clock
With
response time
10 ms from state 0 to state 1)relay output
5 ms from state 1 to state 0)relay output
connections - terminals
Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid
Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid
Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid
Screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
tightening torque
0,5 N.m
overvoltage category
III EN/IEC 60664-1
net weight
0,4 kg
Environment
immunity to microbreaks
1 ms repeated 20 times
product certifications
C-Tick
UL
CSA
GL
GOST
standards
EN/IEC 60068-2-6 Fc
EN/IEC 61000-4-12
EN/IEC 61000-4-3
EN/IEC 61000-4-6 level 3
EN/IEC 61000-4-5
EN/IEC 61000-4-11
EN/IEC 61000-4-2 level 3
EN/IEC 60068-2-27 Ea
EN/IEC 61000-4-4 level 3
IP degree of protection
IP20 IEC 60529 terminal block)
IP40 IEC 60529 front panel)
environmental characteristic
EMC directive EN/IEC 61000-6-2
EMC directive EN/IEC 61000-6-3
EMC directive EN/IEC 61000-6-4
EMC directive EN/IEC 61131-2 zone B
Low voltage directive EN/IEC 61131-2
disturbance radiated/conducted
Class B EN 55022-11 group 1
pollution degree
2 EN/IEC 61131-2
ambient air temperature for operation
-20…40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2
-20…55 °C IEC 60068-2-1 and IEC 60068-2-2
ambient air temperature for storage
-40…70 °C
operating altitude
2000 m
maximum altitude transport
3048 m
relative humidity
95 % without condensation or dripping water
