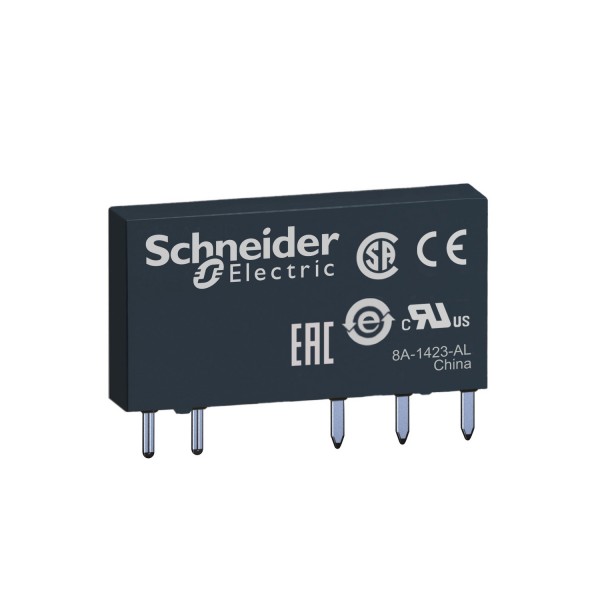

Õhuke liidese pistikrelee | 6A, 60V DC, 1CO, standard - Releed - Kilbitarvikud

Details

Main
range of product	Zelio Relay
series name	Slim interface relay
product or component type	Plug-in relay
device short name	RSL
contacts type and composition	1 C/O
contact operation	Standard
[Uc] control circuit voltage	60 V DC
[Ithe] conventional enclosed thermal current	6 A -40…55 °C
status LED	Without
control type	Without push-button

Complementary
shape of pin	Flat (PCB type)
average resistance	16600 Ohm 23 °C +/- 15 %
rated operational voltage limits	45...84 V DC
[Ui] rated insulation voltage	250 V EN/IEC 277 V cUL
[Uimp] rated impulse withstand voltage	6 kV IEC
contacts material	Silver alloy (AgSnO2)
[Ie] rated operational current	6 A AC-1/DC-1)IEC/UL
minimum switching current	10 mA
maximum switching voltage	277 V
Minimum switching voltage	12 V
maximum switching capacity	1500 VA 50 W
minimum switching capacity	120 mW
operating rate	<= 360 cycles/hour under load <= 18000 cycles/hour no-load
mechanical durability	10000000 cycles
electrical durability	60000 cycles, 6 A 250 V, AC-1 C/O
operating time	5 ms reset 12 ms
protection category	RT III
test levels	Level A
operating position	Any position
width	5 mm
height	28 mm
depth	18,5 mm
terminals description ISO n°1	(11-12-14)OC (A1-A2)CO
net weight	0,0054 kg
load current	6 A 250 V AC 0.5 mm mounting distance
average coil consumption	0,21 W
drop-out voltage threshold	>= 0.05 Uc
safety reliability data	B10d = 60000
mounting support	Socket or PCB
device presentation	Complete product

Environment
dielectric strength	1000 V AC between contacts 4000 V AC between coil and contact
standards	CSA C22.2 No 14 UL 508 EN/IEC 61810-1
product certifications	CSA UL EAC
ambient air temperature for storage	-40…70 °C
vibration resistance	+/- 1 mm 10…55 Hz)EN/IEC 60068-2-6
IP degree of protection	IP40 EN/IEC 60529
shock resistance	5 gn 11 ms) not operating EN/IEC 60068-2-27 5 gn 11 ms) in operation EN/IEC 60068-2-27
ambient air temperature for operation	-40…55 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
