3-Faasiline mooduljuhtimisrelee | 8A, 200…240V AC, 2CO

Previous

Liidese pistikrelee | 10A, 48V DC, 1CO, lukustatav testinupp

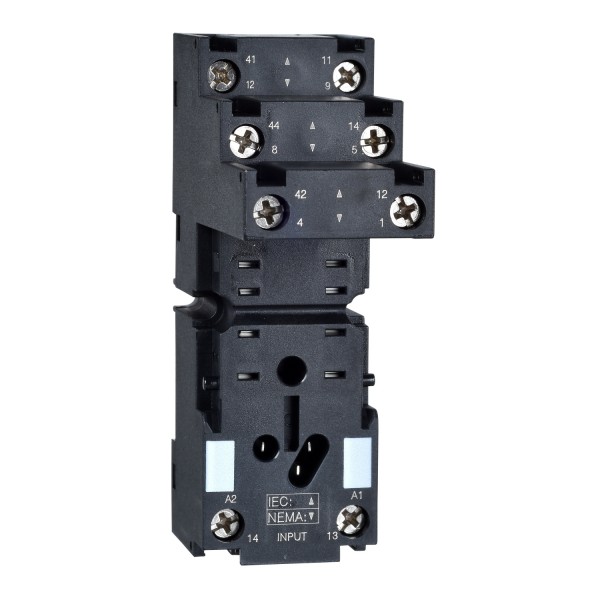

Pistikupesa eraldi kontaktidega | 12A, 250V AC, relee tüüp RXM2, kruvipistik

Ülevaaded: 0

Tootekood: RXZE2S108M

Quick Overview

Saadavus: Tellimisel

3,03 € (ilma KM-ta)

Details

Main
range of product
Zelio Relay
product or component type
Socket
contact terminal arrangement
Separate
product compatibility
Plug-in relay RXM 2 C/O
Plug-in relay REXL 2 C/O
shape of pin
Flat
device short name
RXZ
sale per indivisible quantity
10
Complementary
[Ith] conventional free air thermal current
5 A with bus jumper
12 A
[Ue] rated operational voltage
< 250 V
connections - terminals
Connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 17) flexible with cable end
Connector, 1 x 0.5...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end
Connector, 2 x 0.25...2 x 1 mm² AWG 20...AWG 14) solid without cable end
tightening torque
< 1 N.m M3
fixing mode
By screw panel)
Clip-on 35 mm symmetrical DIN rail)
marking
CE
width
27 mm
net weight
0,058 kg
Environment
standards
IEC 61984
product certifications
CSA
Lloyd's
UL
ambient air temperature for storage
-40…85 °C
ambient air temperature for operation
-40…55 °C
IP degree of protection
IP20 EN/IEC 60529
dielectric strength
2500 V
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
