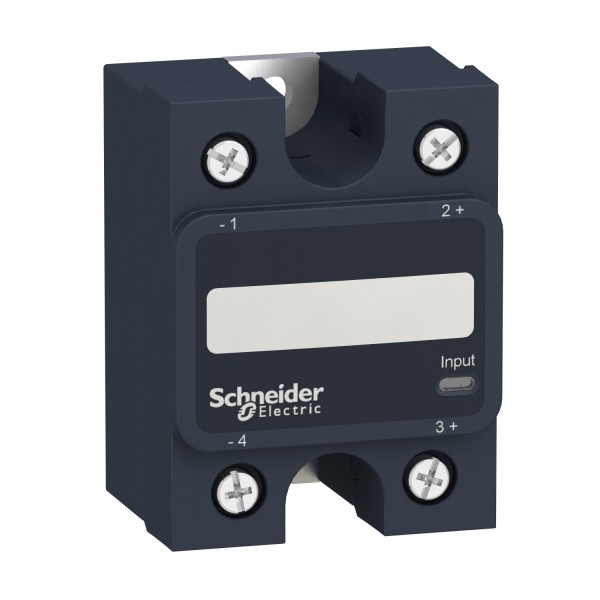

Pooljuhtpaneeli relee | 90A, sisend 4…32V DC, väljund 48…660V AC, nullpingelülitus, termopadi

Ülevaaded: 0

Tootekood: SSP1A490BDT

Quick Overview

Saadavus: Tellimisel

50,18 € (ilma KM-ta)

Details

Main
range of product
Harmony Relay
product or component type
Solid state relay
Provided accessory
Thermal pad
device short name
SSP1
mounting support
Panel
Number of phases
1 phase
Contacts type and conifguration
1 NO
[In] rated current
90 A
solid state output type
Zero voltage switching
SCR output
Complementary
[Uc] control circuit voltage
4...32 V DC
minimum switching voltage
4 V DC turn-on
maximum switching voltage
1 V DC turn-off
response time
0.5 cycle turn-on)
0.5 cycle turn-off)
Input current
7…12 mA
output voltage
48...660 V AC
load current
0,15…90 A
Transient overvoltage
1200 V
surge current
1200 A 16.6 ms
maximum I²t for fusing
5976 A².s 8.33 ms 60 Hz
6560 A².s 10 ms 50 Hz
Co-ordination type
Type 1 - 63 A miniature circuit breaker (MCB) B
Type 2 - 50 A miniature circuit breaker (MCB) B
maximum leakage current
1 mA off-state
maximum voltage drop
<1,15 V on-state
dV/dt
500 V/µs off-state at maximum voltage
Power factor
0,5 with maximum load)
Motor controller rating
1,5 hp 120 V AC
3 hp 240 V AC
7,5 hp 480 V AC
insulation resistance
1000 MOhm 500 V DC
Maximum capacitance
8 pF input/output
dielectric strength
4 kV AC input/output
4 kV AC input or output to case
[Uimp] rated impulse withstand voltage
6 kV output to case
6 kV input to output
tightening torque
1.5...1.7 N.m input
2...2.2 N.m output
connections - terminals
Screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input
Screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output
Screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input
Screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output
Forked type tag connectors 9.2 x 4 mm input
Ring lugs 9.2 x 4 mm input
Forked type tag connectors 11.7 x 4.5 mm output
Ring lugs 11.7 x 4.5 mm output
Thermal resistance
0.27 °C/W junction to case
thermal pad impedance
0.48 °C-in²/W at 25 psi
LED indicator
LED, green input
IP degree of protection
IP20
safety reliability data
MTTFd = 1875.9 years
B10d = 1731395
net weight
89,2 g
device presentation
Complete product
Environment
ambient air temperature for operation
-40…80 °C
ambient air temperature for storage
-40…125 °C
pollution degree
2
overvoltage category
III
product certifications
REACH
UL
RoHS
CSA
CE
EAC
marking
EAC
UL
CE
CSA
standards
CSA C22.2 No 14-13
EN/IEC 60950-1
UL 508
EN/IEC 62314
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
