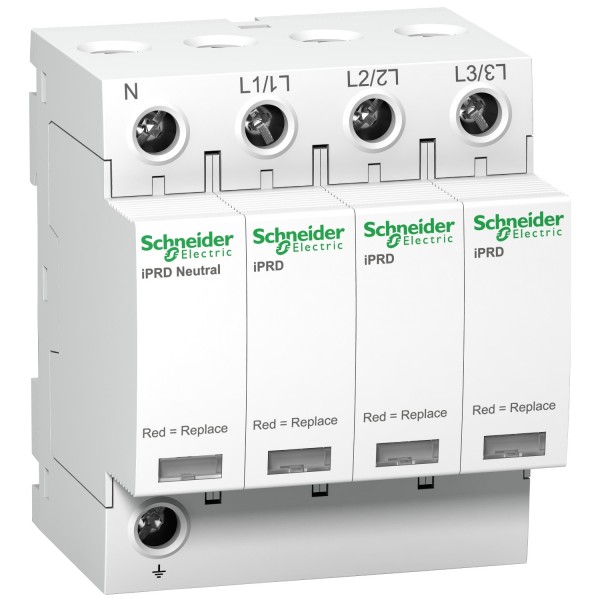

iPRD40r modulaarne liigpingepiirik - 3P + N - 350V - kaugedastusega - Liigpingepiirikud - Kilbitarvikud

Details

Main
range of product	Acti 9
product name	Acti 9 iPRD
product or component type	Surge arrester with pluggable cartridge
device short name	IPRD40r
device application	Distribution
poles description	3P + N
remote signalling	With
signal contacts composition	1 SD (1 C/O)
surge arrester type	Electrical distribution network
earthing system	TT TN-S

Complementary
surge arrester class type	Type 2
surge arrester technology	MOV + GDT
[Ue] rated operational voltage	230/400 V AC +/- 10 %)50/60 Hz
[In] nominal discharge current	Common mode 15 kA L/PE) Common mode 15 kA N/PE) Differential mode 15 kA L/N)
[Imax] maximum discharge current	Common mode 40 kA L/PE Common mode 40 kA N/PE Differential mode 40 kA L/N
[Uc] maximum continuous operating voltage	Common mode 260 V N/PE Common mode 350 V L/PE Differential mode 350 V L/N
maximum [Up] voltage protection level	Common mode <1,4 kV type 2 N/PE Differential mode <1,4 kV type 2 L/N
[Ut] temporary overvoltage	337 V L/N 5 s withstand 1200 V N/PE 200 ms safe failure mode 442 V L/PE 5 s withstand 1453 V L/PE 200 ms safe failure mode
disconnector device type	Associated circuit breaker iC60H 50 A C - Icu 15 kA Associated circuit breaker iC60N 40 A C - Icu 10 kA Associated circuit breaker NG125H 63 A C - Icu 36 kA Associated circuit breaker NG125L 63 A C - Icu 50 kA Associated circuit breaker NG125N 40 A C - Icu 25 kA Associated fuse gG 63 A - Icu 15 kA Associated fuse gG 80 A - Icu 50 kA
[Isccr] short-circuit current rating	50 kA
signalling circuit voltage	0.25 A 250 V AC 50/60 Hz
mounting mode	Clip-on
mounting support	DIN rail
9 mm pitches	8
height	85 mm
width	72 mm
depth	69 mm
net weight	0,421 kg
colour	White RAL 9003)
response time	<= 25 ns
[Ipe] Ground residual current	0,6 mA 0,003 mA
connections - terminals	Tunnel type terminal downside) 2,5…35 mm² Tunnel type terminal upside) 2,5…35 mm²
tightening torque	2,5 N.m

Environment
standards	EN 61643-11:2012 IEC 61643-11:2011
product certifications	CE
quality labels	NF KEMA-KEUR
IP degree of protection	On front face IP40 IEC 60529 Built-in IP20 IEC 60529
IK degree of protection	IK03 IEC 62262
relative humidity	5…95 %
operating altitude	2000 m
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
