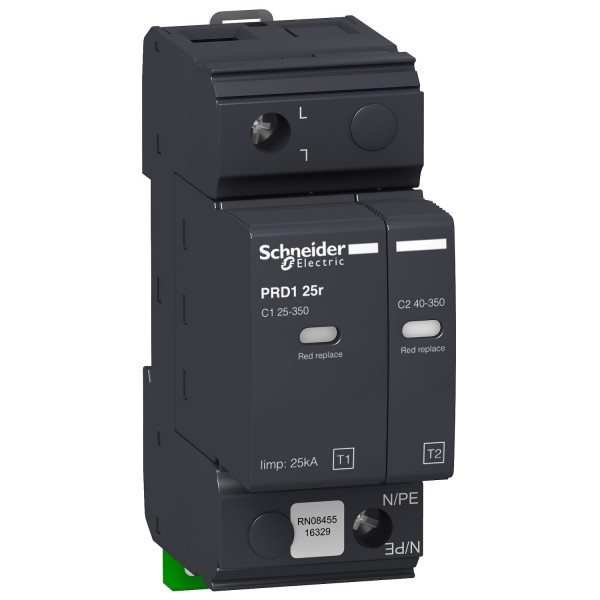

PRD1 25r modulaarne liigpingepiirik - 1 poolune - 350V - kaugülekandega - Liigpingepiirikud - Kilbitarvikud

Details

Main
range of product	Multi 9
product name	Multi 9 PRD1
product or component type	Surge arrester with pluggable cartridge
device short name	PRD1 25r
device application	Distribution
poles description	1P
remote signalling	With
signal contacts composition	1 SD (1 C/O)
surge arrester type	Electrical distribution network
earthing system	IT 230 TN-C TT

Complementary
surge arrester class type	Type 1 + 2
surge arrester technology	MOV Spark gap
[Ue] rated operational voltage	230 V AC +/- 10 %)50 Hz
[In] nominal discharge current	Common mode 25 kA L/PE)
[Imax] maximum discharge current	Common mode 40 kA L/PE
[Iimp] impulse current	Common mode 25 kA L/PE 12,5 A.s
[Uc] maximum continuous operating voltage	Common mode 350 V L/PE
maximum [Up] voltage protection level	Common mode <1,5 kV type 2 L/PE
[Ut] temporary overvoltage	1200 V N/PE 200 ms withstand 415 V L/N 5 s withstand 440 V L/N 7200 s safe failure mode
[If] follow current	25 kA differential mode L/N 3 kA differential mode L/N 100 A common mode N/PE
disconnector device type	Associated fuse gG 315 A standard Associated circuit breaker Compact NSX100B 100 A C - Icu 10 kA Associated circuit breaker Compact NSX100B 100 A C - Icu 15 kA Associated circuit breaker Compact NSX100B 100 A C - Icu 25 kA
[Isccr] short-circuit current rating	25 kA
signalling circuit voltage	1 A 250 V AC 1 A 30 V DC
mounting mode	Clip-on
mounting support	DIN rail
9 mm pitches	4
height	90 mm
width	36 mm
depth	71 mm
net weight	334 g
colour	Anthracite grey RAL 7016)
material	PBT (polybutylene terephthalate)
response time	<= 25 ns
connections - terminals	Tunnel type terminal top or bottom) 10…35 mm² rigid Tunnel type terminal top or bottom) 10…25 mm² flexible
tightening torque	4,5 N.m

Environment
standards	EN 61643-11:2012 IEC 61643-11:2011
product certifications	CE
quality labels	KEMA-KEUR
IP degree of protection	On front face IP40 IEC 60529 Built-in IP20 IEC 60529
IK degree of protection	IK05 IEC 62262
relative humidity	5…95 %
operating altitude	2000 m
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…80 °C

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
