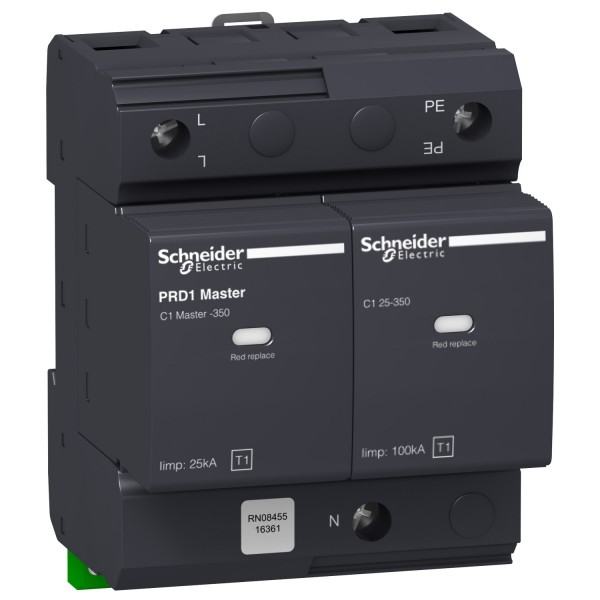

PRD1 Master modulaarne liigpingepiirik - 1-pooluseline + N - 350V - kaugülekandega - Liigpingepiirikud - Kilbitarvikud

Details

Main
range of product	Acti 9
product name	Acti 9 PRD1 Master
product or component type	Surge arrester with pluggable cartridge
device short name	PRD1 Master
device application	Distribution
poles description	1P + N
remote signalling	With
signal contacts composition	1 SD (1 C/O)
surge arrester type	Electrical distribution network
earthing system	TT TN-S

Complementary
surge arrester class type	Type 1
surge arrester technology	Spark gap
[Ue] rated operational voltage	230/400 V AC +/- 10 %)50/60 Hz
[In] nominal discharge current	Common mode 100 kA N/PE) Differential mode 25 kA L/N)
[Iimp] impulse current	Common mode 100 kA N/PE 50 A.s Differential mode 25 kA L/N 12,5 A.s
[Uc] maximum continuous operating voltage	Differential mode 350 V L/N Common mode 350 V N/PE
maximum [Up] voltage protection level	Common mode <1,5 kV type 2 N/PE Differential mode <1,5 kV type 2 L/N
[If] follow current	0,1 kA common mode N/PE 50 kA differential mode L/N
disconnector device type	Associated fuse gG 315 A standard Associated circuit breaker Compact NSX100F 100 A C - Icu 36 kA Associated circuit breaker Compact NSX100N 100 A C - Icu 50 kA
signalling circuit voltage	1 A 250 V AC 50/60 Hz
mounting mode	Clip-on
mounting support	DIN rail
9 mm pitches	8
height	90 mm
width	71,6 mm
depth	70 mm
net weight	0,732 kg
colour	Anthracite grey RAL 7016)
material	PBT (polybutylene terephthalate)
response time	< 100 ns
connections - terminals	Tunnel type terminal downside) 2,5…35 mm² Tunnel type terminal upside) 2,5…35 mm²
tightening torque	4,5 N.m

Environment
standards	EN 61643-11:2012 IEC 61643-11:2011
product certifications	CE
quality labels	KEMA-KEUR
IP degree of protection	On front face IP40 IEC 60529 Built-in IP20 IEC 60529
IK degree of protection	IK05 IEC 62262
relative humidity	5…90 %
operating altitude	2000 m
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…80 °C

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
