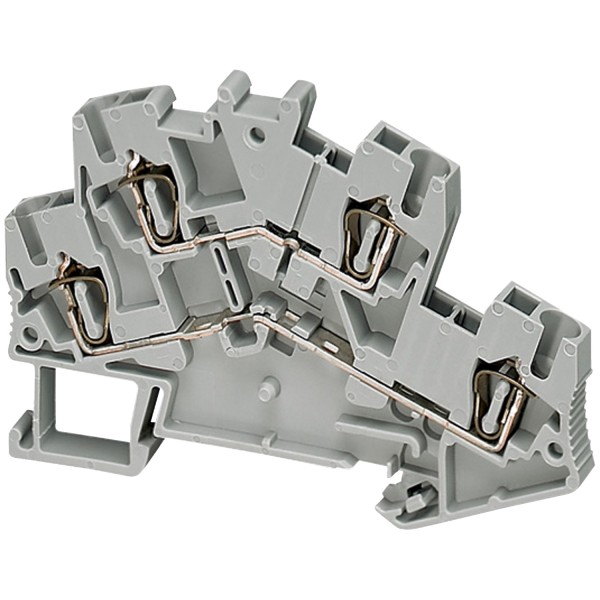

KEVADETERMINAL, KAHELTASEME, 4 PUNKTI, 2,5MM², SININE

Details

Main
range	Linergy
product name	Linergy TR
product or component type	Terminal block
device short name	TRR
accessory / separate part category	Connection accessory
terminal block type	Passthrough
terminal block level	2
mounting mode	Clip-on
nominal cross section	2,5 mm²
length	78 mm
colour	Blue
quantity per set	Set of 50

Complementary
width	5,2 mm
height	55 mm
connections - terminals	1 x spring terminal upstream 1 x spring terminal downstream
number of connections	2
connection position	Top
number of measurement input	4
cable cross section	0,08…2,5 mm², flexible without cable end 0,08…4 mm², solid with cable end 0,2…2,5 mm², flexible with cable end 0,08…4 mm², solid without cable end
wire stripping length	10 mm
tool type	Connection flat screwdriver Disconnection flat screwdriver
[Ue] rated operational voltage	500 V EN/IEC 60947-7-1 300 V CSA 440 V 600 V cURus
[In] rated current	20 A CSA 20 A cURus 22 A EN/IEC 60947-7-1 19,5 A
material	Polyamide 6/6 insulating case Copper alloy connector and screw Copper alloy commoning link Chromium-nickel steel spring
dielectric loss	0,01 at 1 MHz IEC 60250 0,01 at 1 MHz VDE 0303-T4
dielectric constant	3,7 at 1 MHz
resistivity	10000 MΩ.m IEC 60093 10000 MΩ.m VDE 0303-T30
surface resistance	1000 GΩ IEC 60093 1000 GΩ VDE 0303-T30
creep resistance	500 CTI (> 400 kB) IEC 60093 500 CTI (> 400 kB) VDE 0303-T30
flame retardance	V0 0,8 mm UL 94
net weight	12,3 g
range compatibility	Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys
product compatibility	Spacial enclosures

Environment
product certifications	LR ATEX EAC GL VDE IEC-Ex CURus CSA DNV
dielectric strength	1000 V IEC 60243-1
ambient air temperature for operation	-40…130 °C IEC 60216-1 -40…130 °C VDE 0304-T21

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil

Contractual warranty
Garantii	18 months
