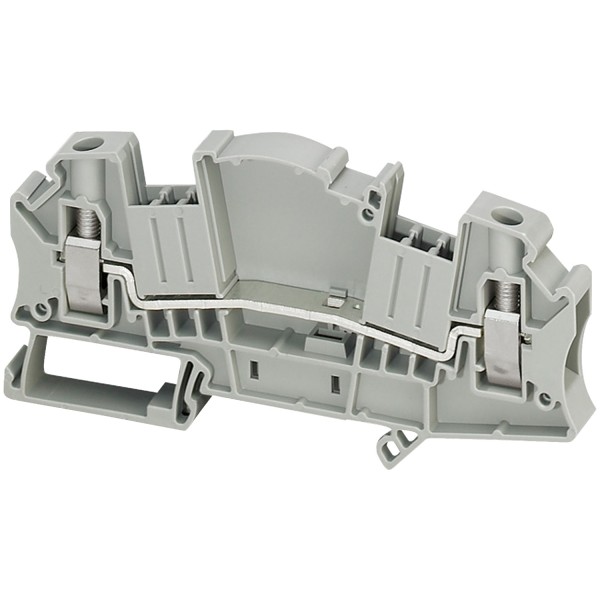

Kruviterminal, sööt läbi, mõõteandur, 2 punkti, 6MM², G

Details

Main
range	Linergy
product name	Linergy TR
product or component type	Terminal block
device short name	TRV
accessory / separate part category	Connection accessory
terminal block type	Passthrough
terminal block level	1
mounting mode	Clip-on
nominal cross section	6 mm²
length	100,8 mm
colour	Grey
quantity per set	Set of 50

Complementary
width	8,2 mm
height	49,6 mm
connections - terminals	1 x screw terminal upstream M4) 1 x screw terminal downstream M4)
number of connections	2
connection position	Inclined
number of measurement input	6
cable cross section	0,2…10 mm², solid 0,2…10 mm², flexible without cable end 0,2…6 mm², flexible with cable end
tightening torque	1,5…1,8 N.m
wire stripping length	10 mm
tool type	Connection screwdriver Disconnection screwdriver
[Ue] rated operational voltage	500 V EN/IEC 60947-7-1 600 V cURus 600 V CSA
[In] rated current	30 A EN/IEC 60947-7-1 30 A cURus 30 A CSA
material	Polyamide 6/6 insulating case Copper alloy connector and screw Copper alloy commoning link Chromium-nickel steel spring
dielectric loss	0,01 at 1 MHz IEC 60250 0,01 at 1 MHz VDE 0303-T4
dielectric constant	3,7 at 1 MHz
resistivity	10000 MΩ.m IEC 60093 10000 MΩ.m VDE 0303-T30
surface resistance	1000 GΩ IEC 60093 1000 GΩ VDE 0303-T30
creep resistance	500 CTI (> 400 kB) IEC 60093 500 CTI (> 400 kB) VDE 0303-T30
flame retardance	V0 0,8 mm UL 94
net weight	25,4 g
range compatibility	Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys
product compatibility	Spacial enclosures

Environment
product certifications	EAC CSA CURus
dielectric strength	1000 V IEC 60243-1
ambient air temperature for operation	-40…130 °C IEC 60216-1 -40…130 °C VDE 0304-T21

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
