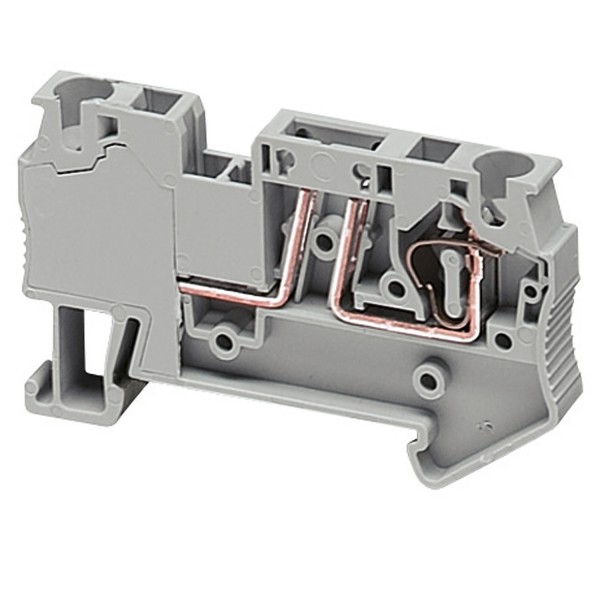

KEVADETERMINAL, PÕHILINE LAHENDUSTERMINAL, 2 PUNKTI, 4MM², HALL

Details

Main
range	Linergy
product name	Linergy TR
product or component type	Terminal block
device short name	TRR
terminal block type	Removable carrier disconnect
associated connection component	Diode Cylindrical fuse Blade
terminal block level	1
mounting mode	Clip-on
nominal cross section	4 mm²
length	57,8 mm
colour	Grey
quantity per set	Set of 50

Complementary
fuse size	5 x 20 mm 6 x 32 mm
width	6,2 mm
height	47,5 mm
connections - terminals	1 x spring terminal upstream 1 x spring terminal downstream
number of connections	2
connection position	Sideways
number of measurement input	1
cable cross section	0,14…6 mm², flexible without cable end 0,14…6 mm², solid
wire stripping length	9 mm
tool type	Connection screwdriver Disconnection screwdriver
[Ue] rated operational voltage	500 V EN/IEC 60947-7-1 600 V CSA 600 V cURus
[In] rated current	20 A EN/IEC 60947-7-1 16 A CSA 16 A cURus
material	Polyamide 6/6 insulating case
dielectric loss	0,01 at 1 MHz IEC 60250 0,01 at 1 MHz VDE 0303-T4
dielectric constant	3,7 at 1 MHz
resistivity	10000 MΩ.m IEC 60093 10000 MΩ.m VDE 0303-T30
surface resistance	1000 GΩ IEC 60093 1000 GΩ VDE 0303-T30
creep resistance	500 CTI (> 400 kB) IEC 60093 500 CTI (> 400 kB) VDE 0303-T30
flame retardance	V0 0,8 mm UL 94
net weight	12,9 g
range compatibility	Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys
product compatibility	Spacial enclosures

Environment
product certifications	CURus EAC
dielectric strength	1000 V IEC 60243-1
ambient air temperature for operation	-40…130 °C IEC 60216-1 -40…130 °C VDE 0304-T21

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil
