Spacial CRN plain door with mount.plate. H600xW600xD250 IP66 IK10 RAL7035

Previous

Plain mounting plate H1200xW600mm made of galvanised sheet steel

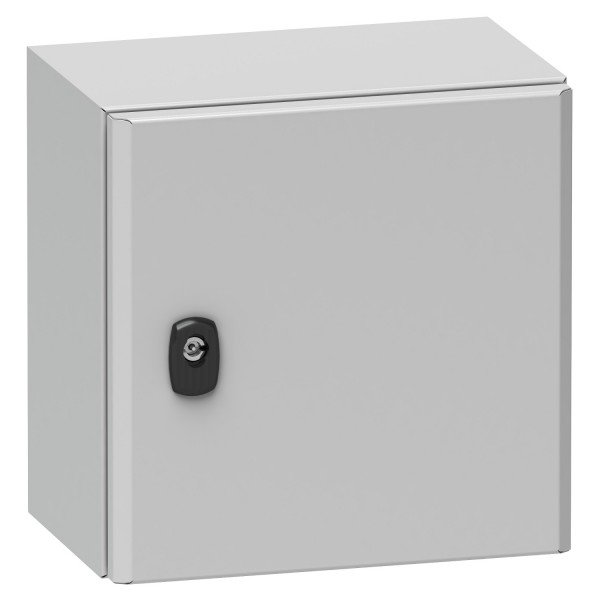

Spacial S3D plain door with mount.plate. H1200xW800xD400 IP66 IK10 RAL7035.

Ülevaaded: 0

Tootekood: NSYS3D12840P

Quick Overview

Saadavus: Tellimisel

565,39 € (ilma KM-ta)

Details

Main
range
Spacial
product name
Spacial S3D
Application
Multi-purpose
Category
Compact enclosure
enclosure nominal height
1200 mm
enclosure nominal width
800 mm
enclosure nominal depth
400 mm
door type
Plain
mounting plate description
Plain
type of gland plate
Standard
installation accessory type
Wall-mounting
device composition
1 body
2 cable gland plate
1 mounting plate
1 door with lock
Complementary
body type
Single piece body
Gutter-shaped front rail double sheet thickness
number of doors
Front face 1
door opening side
Reversible 120 °)
lock type
3 points lock, 3 mm double-bar
accessibility for operation
Front
removable parts
Door by hinges
Cable gland plate by screws
Mounting plate by fixing element
material
Enclosure steel
Mounting plate galvanised steel
surface finish
Enclosure epoxy-polyester powder
colour
Enclosure grey RAL 7035)
standards
IEC 62208
product certifications
BV
CUL
DNV
UL
LR
GL
net weight
68 kg
Environment
IP degree of protection
IP66 IEC 60529
IK degree of protection
IK10 IEC 62262
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Contractual warranty
Garantii
18 months
