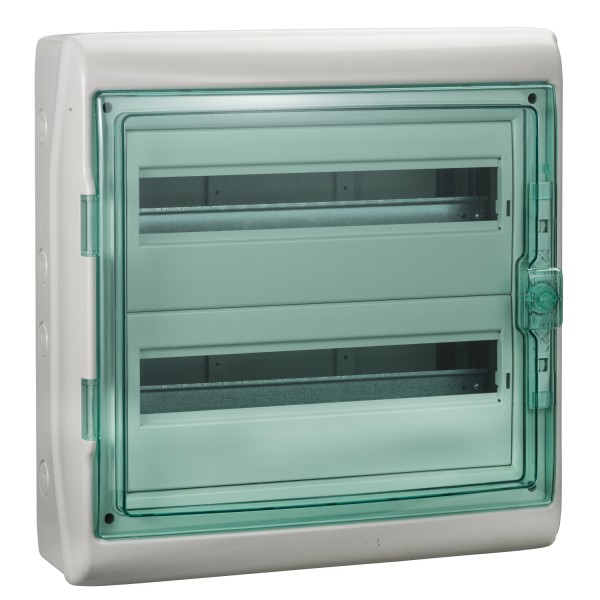

Kaedra - for modular device - 2 x 18 modules - 1+1 terminal blocks - Tööstuskilbid - plastik - Kilbid

Details

Main
range	Kaedra
product or component type	Weatherproof enclosure
enclosure type	Enclosure for modular device
accessories included with enclosure	1 terminal block support 2 wiring straps 2 marking kits 1 terminal block 4 holes 1 terminal block 32 holes
mounting plate description	Slotted

Complementary
enclosure mounting	Surface
number of 18 mm modules per row	18
total number of 18 mm modules	36
number of horizontal rows	2
electrical insulation class	Class II Double insulation
provided equipment	2 marking kit 2 wiring strap 1 terminal block 4 holes 1 terminal block support 1 terminal block 32 holes
type of front cover	Reversible Transparent
power dissipation in W	47 W
[In] rated current	90 A
type of rail	DIN
number of pre-cutouts PG ISO	17
number of terminal blocks	14 132
distribution block outgoers	18 x 10 mm² 18 x 16 mm²
locking options description	Optional keylock
enclosure material	self-extinguishing polymer
width	448 mm
height	460 mm
depth	160 mm
internal depth	88 mm
colour	Door transparent green Enclosure light grey RAL 7035)
targeted country	Spain

Environment
standards	IEC 60695-2-1 EN 50262 IEC 670 EN 50102 IEC 60529 IEC 60439-3
fire resistance	650 °CIEC 60695-2-1
IP degree of protection	IP65 IEC 60529
IK degree of protection	IK09 EN 50102
Environmental characteristics (UV)	UV resistant class 3ISO 4582:2010 Ultraviolet degradation testISO 4892-2:2013
overvoltage category	II
ambient air temperature for operation	-25…60 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil

Contractual warranty
Garantii	18 months
