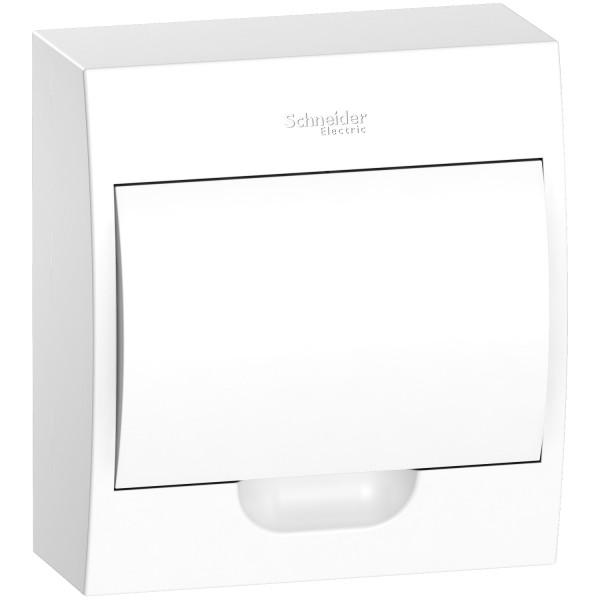

Easy9 - surface enclosure 8 modules - plain door - with E/N term.blocks - Moodulkilbid - Kilbid

Details

Complementary
enclosure mounting	Surface
9 mm pitches	16
Nb of horizontal rows	1
total number of 18 mm modules	8
type of rail	DIN
type of installation	Indoor
terminal block function	Earth / neutral
number of terminal blocks	2 earth / neutral (screwed) with 8 outgoers
cable entry	Knock-out cable entries
Type of door	Plain door
door opening side	Reversible (180 °)
[In] rated current	63 A
[Ue] rated operational voltage	400 V AC
[Uimp] rated impulse withstand voltage	2.5 kV
[Ui] rated insulation voltage	500 V
enclosure material	Enclosure: self-extinguishing plastic
width	184 mm outside:
height	200 mm outside:
depth	94 mm outside:
colour	White (RAL 9003)
net weight	590 g

Environment
standards	IEC 60670-1-24
fire resistance	650 °C ( 1800 s ) conforming to IEC 60695-2-10
IP degree of protection	IP40 conforming to IEC 60529 (closed door) IP30 conforming to IEC 60529 (open door)
IK degree of protection	IK07 conforming to IEC 62262
pollution degree	2
ambient air temperature for operation	-5…60 °C
ambient air temperature for storage	-15…70 °C

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
