Pragma plain door - for enclosure - 2 x 13 modules

Previous

mini Pragma surface enclosure - 1 x 18 modules - translucid door

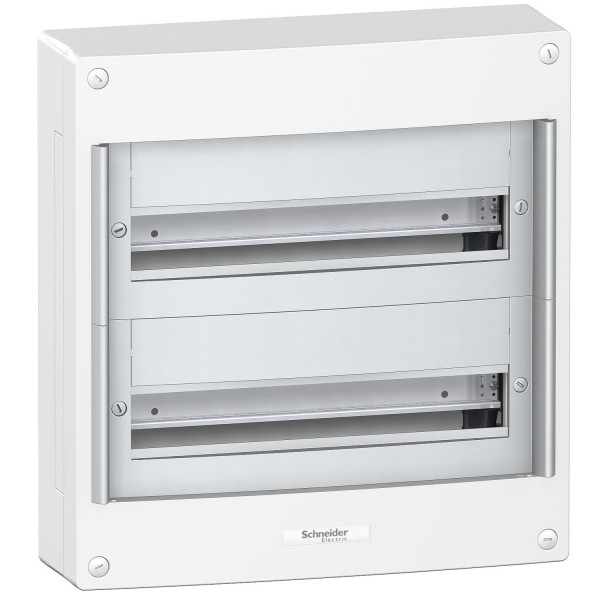

Pragma surface enclosure - IP30 - 2 x 18 modules - without door

Ülevaaded: 0

Tootekood: PRA20218

Quick Overview

Saadavus: Tellimisel

60,49 € (ilma KM-ta)

Details

Main
range
Pragma
product or component type
Enclosure
enclosure type
Distribution enclosure
width
426 mm
height
450 mm
depth
125 mm
Nb of 18 mm modules per row
18
Nb of horizontal rows
2
electrical insulation class
Class II
Double insulation
provided equipment
2 x terminal block
1 x identification label
1 x marking kit
1 x blanking plate strip
Type of door
Without
Complementary
enclosure mounting
Surface
9 mm pitches
36
total number of 18 mm modules
36
power dissipation in W
50 W
[In] rated current
90 A
[Ui] rated insulation voltage
400 V
type of rail
DIN
mounting plate description
Without mounting plate
cable entry
Trunking
Removable plates
Cut-out plates
Cable or tube
number of terminal blocks
1 earth Quick)24
1 neutral Quick)24
distribution block outgoers
3 x 25 mm² earth
21 x 4 mm² earth
3 x 25 mm² neutral
21 x 4 mm² neutral
enclosure material
Back part technoplastic
Front face technoplastic
colour
Enclosure white RAL 9016)
Front face grey RAL 7004)
targeted country
Sweden
Hungary
Czech republic
Russia
Baltic
Greece
Finland
embedding depth
0 mm
internal depth
95 mm
Environment
fire resistance
Back part 650 °C
Front face 650 °C
IP degree of protection
IP30 without door
IP40 with door
IK degree of protection
IK08 without door
IK09 with door
environmental characteristic
Halogen free
overvoltage category
II
ambient air temperature for operation
-25…60 °C
standards
IEC 60670-1
IEC 60670-24
IEC 61439-1
IEC 61439-3
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus
Contractual warranty
Garantii
18 months
