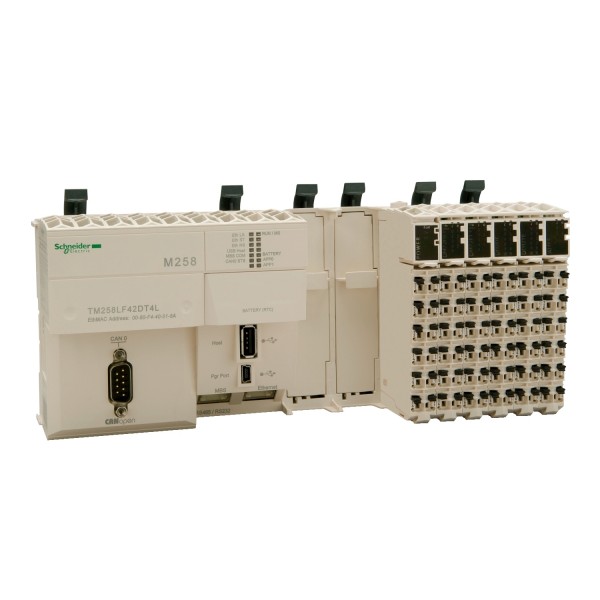

compact base M258 - 42 + 4 I/O - 24 V DC - CANopen

Ülevaaded: 0

Tootekood: TM258LF42DT4L

Quick Overview

Saadavus: Tellimisel

2 403,98 € (ilma KM-ta)

Details

Main
range of product
Modicon M258
product or component type
Logic controller
product specific application
-
discrete I/O number
42
analogue input number
4
discrete output number
12 output
4 fast output
Complementary
discrete input number
10 for fast input
12 for input
4 for regular input
discrete input logic
Sink for fast input
Sink for regular input
Source for input
discrete input voltage
24 V
discrete input voltage type
DC
analogue input type
Current: 0...20 mA
Current: 4...20 mA
Voltage: +/- 10 V
analogue input resolution
12 bits
voltage state 1 guaranteed
>= 15 V for fast input
>= 15 V for fast output
>= 15 V for regular input
voltage state 0 guaranteed
<= 5 V for fast input
<= 5 V for fast output
<= 5 V for regular input
discrete input current
4 mA for fast input
4 mA for regular input
input impedance
6 kOhm for fast input
6 kOhm for regular input
configurable filtering time
0 ms for fast input/regular input and fast output
1.5 ms for fast input/regular input and fast output
12 ms for fast input/regular input and fast output
4 ms for fast input/regular input and fast output
anti bounce filtering
2 µs...4 ms configurable fast input/regular input and fast output
maximum cable distance between devices
<30 m for fast input
<30 m for fast output
<30 m for regular input
isolation between channels and internal logic
500 Vrms AC
isolation between channels
None
discrete output logic
Source
discrete output voltage
24 V DC
output voltage limits
19.2...28.8 V
discrete output current
4 mA for fast output
[Us] rated supply voltage
24 V DC for embedded expert modules power
24 V DC for I/O power segment
24 V DC for main supply
supply voltage limits
20.4…28.8 V
[In] rated current
0.04 A for embedded expert modules power
10 A for I/O power segment
0.31 A for main supply
peak current
100 kA (duration = <= 70 s) for main supply
25 kA (duration = <= 500 s) for I/O power segment
50 kA (duration = <= 150 s) for embedded expert modules power
1.2 A (duration = > 70 s) for main supply
maximum power consumption in W
14.14 W
execution time per instruction
22 ns Boolean
memory description
Flash 128 MB
Internal RAM 64 MB
realtime clock
Without any user calibration clock, clock drift < 30 s/month at 25 °C
With user calibration clock, clock drift <= 6 s/month
data backed up
Variables of type retain and retain persistent CR2477M Renata, 1.5 years autonomy
integrated connection type
1 isolated serial link with female RJ45 connectorModbus with master/slave RTU/ASCII or character mode ASCII, physical interface: RS232/RS485, transmission rate: 300...115200 bps
1 isolated serial link with female RJ45 connectorEthernet Modbus TCP/IP with slave, physical interface: 10BASE-T/100BASE-TX
1 isolated serial link with mini B USB connector, transmission rate: 480 Mbit/s
1 isolated serial link with USB type A connector, transmission rate: 480 Mbit/s
2 free slots PCI
1 CANopen with male SUB-D 9 connectorCANopen with master
transmission rate
125 kbit/s for bus length of 500 m for CANopen
250 kbit/s for bus length of 250 m for CANopen
50 kbit/s for bus length of 1000 m for CANopen
500 kbit/s for bus length of 100 m for CANopen
10 kbit/s for bus length of 5000 m for CANopen
1000 kbit/s for bus length of 4 m for CANopen
20 kbit/s for bus length of 2500 m for CANopen
800 kbit/s for bus length of 25 m for CANopen
counting input number
8 counting input(s) at 200 kHz
local signalling
1 LED per channel for I/O state
1 LED for CAN0 STS
1 LED for MBS COM
1 LED green/red for APP0
1 LED green/red for APP1
1 LED green/red for Eth NS (Ethernet network status)
1 LED green/red for Eth ST (Ethernet status)
1 LED green/red for RUN/MS (module status)
1 LED green/red for USB host
1 LED green/yellow for Eth LA (Ethernet activity)
1 LED red for BATT (battery status)
marking
CE
mounting support
Symmetrical DIN rail
width
237.5 mm
height
99 mm
depth
85 mm
net weight
0.77 kg
Environment
standards
UL 508
IEC 61131-2
CSA C22.2 No 213
CSA C22.2 No 142
product certifications
CULus
CSA
GOST-R
C-Tick
ambient air temperature for operation
0…55 °C without (horizontal installation)
0…60 °C with derating factor (horizontal installation)
0…50 °C (vertical installation)
ambient air temperature for storage
-25…70 °C
relative humidity
5…95 % without condensation
IP degree of protection
IP20 conforming to IEC 61131-2
pollution degree
2 conforming to IEC 60664
operating altitude
0...2000 m
storage altitude
0…3000 m
vibration resistance
1 gn at 8.4…150 Hz on DIN rail
3.5 mm at 5…8.4 Hz on DIN rail
shock resistance
15 gn for 11 ms
resistance to electrostatic discharge
4 kV on contact conforming to EN/IEC 61000-4-2
8 kV in air conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields
1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3
10 V/m 80...2000 MHz conforming to EN/IEC 61000-4-3
resistance to fast transients
1 kV (I/O) conforming to EN/IEC 61000-4-4
1 kV (shielded cable) conforming to EN/IEC 61000-4-4
2 kV (power lines) conforming to EN/IEC 61000-4-4
surge withstand
0.5 kV differential mode conforming to EN/IEC 61000-4-5
1 kV common mode conforming to EN/IEC 61000-4-5
disturbance radiated/conducted
CISPR 11
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
