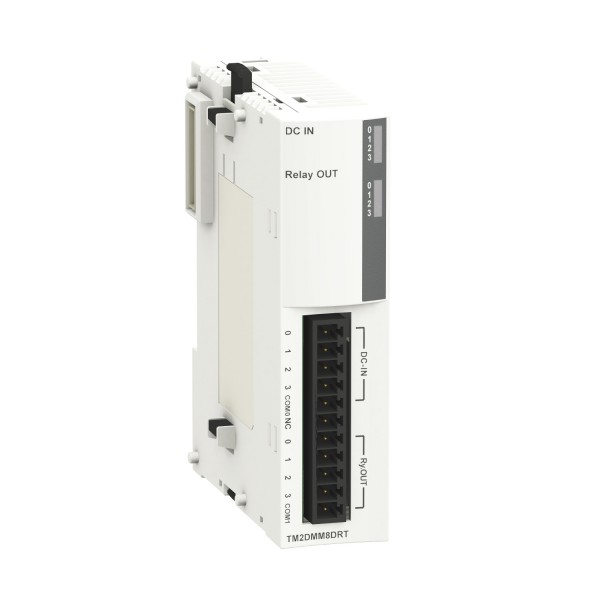

discrete I/O module M238 - 4 inputs 24 V DC - 4 outputs relay- 1 terminal block - Kontrollerid - Tööstusautomaatika

Details

Complementary
range compatibility	Twido Advantys OTB
input voltage limits	20.4...28.8 V
discrete input logic	Sink or source
discrete input current	7 mA
input impedance	3.4 kOhm
discrete output function	1 NO
current per channel	2 A
maximum current per output common	7 A
number of common point	1 for output 1 for input
contact resistance	45 mOhm
response time	<= 10 ms from state 0 to state 1 for output <= 5 ms from state 1 to state 0 for output 4 ms at state 0 for input 4 ms at state 1 for input
minimum switching current	0.1 mA at 0.1 V DC
isolation between channels	None
isolation between channels and internal logic	2300 V for 1 minute (output) 500 V for 1 minute (input)
isolation between input channel and output channel	1500 V for 1 minute
isolation between output channels group	1500 V for 1 minute
mechanical durability	20000000 cycles
electrical durability	100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive 100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive 100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms) 100000 cycles 2 A 240 V AC resistive 100000 cycles 2 A 30 V DC resistive
current consumption	20 mA at 24 V DC at state 1 for all input/output 25 mA at 5 V DC at state 1 for all input/output
local signalling	1 display block
electrical connection	1 removable screw terminal block
mounting support	35 mm symmetrical DIN rail
net weight	0.095 kg

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
