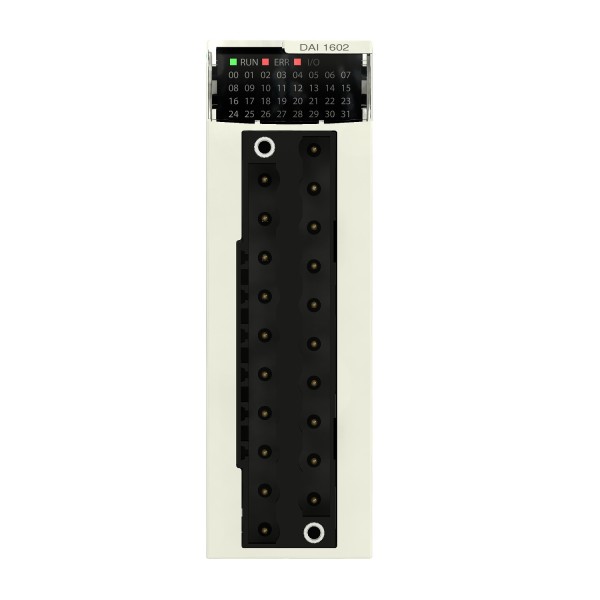

discrete input module X80 - 16 inputs - 24V AC resistive - Kontrollerid - Tööstusautomaatika

Details

Main
range of product	Modicon X80
product or component type	Discrete input module
product specific application	For severe environments
discrete input number	16
discrete input type	Isolated
input type	Resistive
discrete input voltage	24 V DC negative 24 V AC
discrete input current	3 mA
input compatibility	With 2-wire/3-wire proximity sensors IEC 60947-5-2

Complementary
network frequency	50/60 Hz
network frequency limits	47…63 Hz
sensor power supply	20…26 V 60 °C
voltage state 1 guaranteed	>= 15 V
current state 1 guaranteed	>= 2 mA
voltage state 0 guaranteed	<= 5 V
current state 0 guaranteed	<= 1 mA
input impedance	6400 Ohm
insulation resistance	> 10 MOhm 500 V DC
maximum power dissipation in W	3 W
DC typical filtering time	10 ms
DC maximum filtering time	20 ms
AC activation filtering time	15 ms
AC deactivation filtering time	20 ms
paralleling of inputs	No
typical current consumption	90 mA 3.3 V DC
MTBF reliability	1504958 H
protection type	1 external fuse per group of channel 0,5 A fast blow
voltage detection threshold	< 14 V DC sensor fault > 18 V DC sensor OK
status LED	Module operating (RUN) 1 LED green) Channel diagnostic 1 LED per channel green) Module error (ERR) 1 LED red) Module I/O 1 LED red)
net weight	0,115 kg

Environment
IP degree of protection	IP20
directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive
product certifications	IEC-Ex Merchant Navy CE RCM UL ATEX CSA EAC
standards	EN 61131-2 EN 61000-6-4 EN 61000-6-2 EN 61010-2-201
dielectric strength	1500 V AC 50/60 Hz 1 minute, primary/secondary
vibration resistance	3 gn
shock resistance	30 gn
ambient air temperature for storage	-40…85 °C
ambient air temperature for operation	-25…70 °C
relative humidity	5…95 % 55 °C without condensation
protective treatment	Conformal coating
environmental characteristic	Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2
operating altitude	0...2000 m 2000...5000 m with derating factor

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
