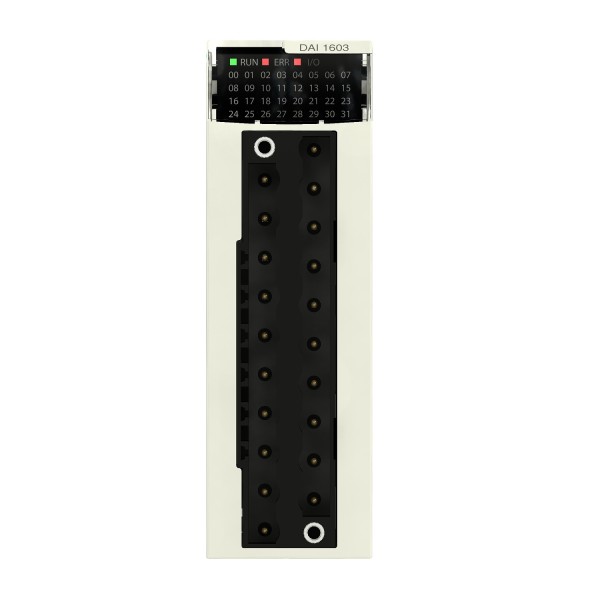

discrete input module X80 - 16 inputs - 48 V AC

Ülevaaded: 0

Tootekood: BMXDAI1603

Quick Overview

Saadavus: Tellimisel

331,17 € (ilma KM-ta)

Details

Main
range of product
Modicon X80
product or component type
Discrete input module
discrete input number
16
discrete input type
Isolated
input type
Capacitive
discrete input voltage
48 V AC
discrete input current
5 mA
input compatibility
With 2-wire/3-wire proximity sensors IEC 60947-5-2
Complementary
network frequency
50/60 Hz
network frequency limits
47…63 Hz
sensor power supply
20…26 V
voltage state 1 guaranteed
>= 34 V
current state 1 guaranteed
>= 2 mA
voltage state 0 guaranteed
<= 10 V
current state 0 guaranteed
<= 1 mA
input impedance
9000 Ohm
insulation resistance
> 10 MOhm 500 V DC
maximum power dissipation in W
4 W
AC activation filtering time
10 ms
AC deactivation filtering time
20 ms
typical current consumption
90 mA 3.3 V DC
MTBF reliability
1504958 H
protection type
1 external fuse per group of channel 0,5 A fast blow
voltage detection threshold
< 24 V DC sensor fault
> 36 V DC sensor OK
status LED
Module operating (RUN) 1 LED green)
Channel diagnostic 1 LED per channel green)
Module error (ERR) 1 LED red)
Module I/O 1 LED red)
net weight
0,115 kg
Environment
IP degree of protection
IP20
directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive
product certifications
Merchant Navy
CSA
CE
RCM
UL
EAC
standards
EN 61131-2
EN 61000-6-4
EN 61000-6-2
EN 61010-2-201
dielectric strength
1500 V AC 50/60 Hz 1 min
vibration resistance
3 gn
shock resistance
30 gn
ambient air temperature for storage
-40…85 °C
ambient air temperature for operation
0…60 °C
relative humidity
5…95 % 55 °C without condensation
protective treatment
TC
operating altitude
0...2000 m
2000...5000 m with derating factor
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
