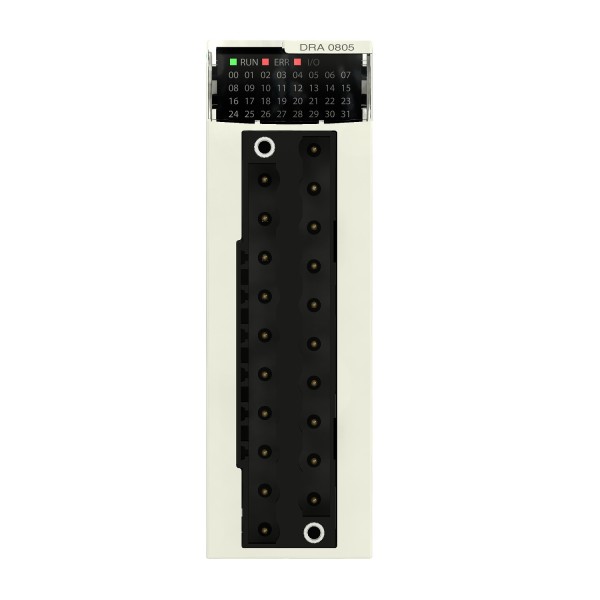

discrete output module X80 - 8 outputs - relay - 24..240 V AC

Ülevaaded: 0

Tootekood: BMXDRA0805

Quick Overview

Saadavus: Tellimisel

279,99 € (ilma KM-ta)

Details

Main
range of product
Modicon X80
product or component type
Discrete output module
discrete output number
8 EN/IEC 61131-2
discrete output type
Relay
discrete output voltage
24...240 V 19...264 V AC
12...24 V 10...34 V DC
Complementary
[Ith] conventional free air thermal current
3 A
insulation resistance
> 10 MOhm 500 V DC
maximum power dissipation in W
2,7 W
response time on output
< 10 ms activation
< 8 ms deactivation
typical current consumption
79 mA 3.3 V DC
MTBF reliability
2119902 H
output overload protection
Use 1 fast blow fuse per channel or group of channel
output overvoltage protection
Use discharge diode on each output DC
Use RC circuit on each output AC
Use ZNO surge limiter on each output AC
output short-circuit protection
Use 1 fast blow fuse per channel or group of channel
minimum switching current
10 mA 5 V DC
electrical durability
AC-15 100000 cycles 220 VA 200...240 V 0,35)
AC-12 1000000 cycles 110 VA 110...120 V
AC-12 1000000 cycles 220 VA 200...240 V
AC-12 1000000 cycles 50 VA 48 V
AC-15 1000000 cycles 110 VA 200...240 V 0,35)
DC-12 1000000 cycles 24 W 24 V
DC-13 1000000 cycles 24 W 24 V
AC-15 10000000 cycles 10 VA 110...120 V 0,35)
AC-15 10000000 cycles 10 VA 200...240 V 0,35)
AC-15 150000 cycles 110 VA 110...120 V 0,35)
AC-15 1500000 cycles 50 VA 110...120 V 0,35)
AC-15 2000000 cycles 24 VA 48 V 0,35)
DC-13 2000000 cycles 10 W 24 V
DC-12 300000 cycles 40 W 24 V
AC-15 3000000 cycles 50 VA 200...240 V 0,35)
AC-12 500000 cycles 110 VA 48 V
AC-12 500000 cycles 220 VA 110...120 V
AC-15 5000000 cycles 10 VA 48 V 0,35)
AC-15 500000 cycles 24 VA 24 V 0,35)
AC-12 700000 cycles 50 VA 24 V
status LED
Module operating (RUN) 1 LED green)
Channel diagnostic 1 LED per channel green)
Module error (ERR) 1 LED red)
Module I/O 1 LED red)
net weight
0,145 kg
Environment
IP degree of protection
IP20
directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive
product certifications
CSA
Merchant Navy
RCM
EAC
UL
CE
standards
EN 61131-2
EN 61000-6-4
EN 61000-6-2
EN 61010-2-201
dielectric strength
2000 V AC 50/60 Hz 1 min
vibration resistance
3 gn
shock resistance
30 gn
ambient air temperature for storage
-40…85 °C
ambient air temperature for operation
0…60 °C
relative humidity
5…95 % 55 °C without condensation
protective treatment
TC
environmental characteristic
Corrosion resistance
Dust resistant
operating altitude
0...2000 m
2000...5000 m with derating factor
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
