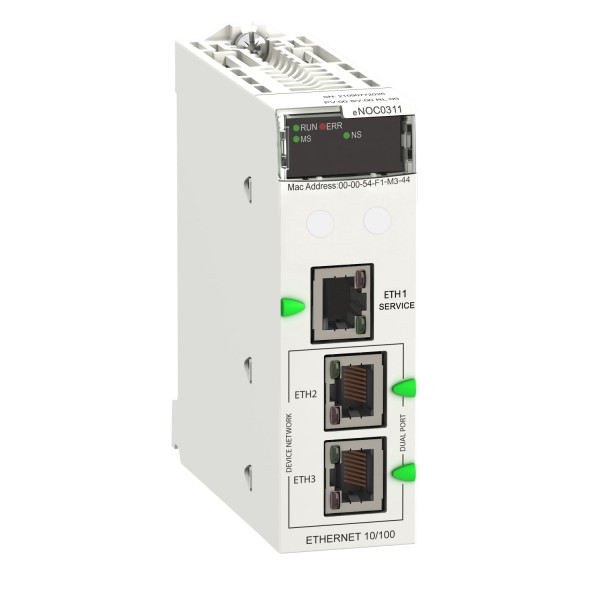

Ethernet module M580 - 3-port FactoryCast Ethernet communication - Coated

Ülevaaded: 0

Tootekood: BMENOC0311C

Quick Overview

Saadavus: Tellimisel

1 976,94 € (ilma KM-ta)

Details

Main
range of product
Modicon M580
product or component type
Communication module
product specific application
For severe applications
product compatibility
BMEXBP... - Ethernet + X-bus rack
concept
Transparent Ready
Complementary
integrated connection type
3 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s, transmission mode: double shielded twisted pair
web server
Advanced
transmission support medium
Ethernet backplane
communication service
Bandwidth management
FDR server
SNMP network administrator
Modbus TCP I/O Scanner and Messaging
Ethernet/IP I/O Scanner and Messaging
RSTP support
Port mirroring
Embedded multiport switch
web services
FactoryCast configurable
port Ethernet
10BASE-T/100BASE-TX
supply
Internal power supply via rack
protective treatment
Conformal coating
module format
Standard
current consumption
555 mA at 3.3 V DC
net weight
0.2 kg
Environment
ambient air temperature for operation
0…60 °C
IP degree of protection
IP20
environmental characteristic
Gas resistant class Gx
Gas resistant class 3C4
Dust resistant class 3S4
Sand resistant class 3S4
Salt resistant level 2
Mold growth resistant class 3B2
Fungal spore resistant class 3B2
marking
CE
product certifications
UL
directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive
standards
EN 61131-2
EN 61000-6-4
EN 61000-6-2
EN 61010-2-201
local signalling
1 LED (green)processor running (RUN):
1 LED (red)processor or system fault (ERR):
1 LED (green/red)ETH MS (Ethernet port configuration status):
1 LED (green/red)Eth NS (Ethernet network status):
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
