motor controller LTMR TeSys T - 100..240 V AC 27 A for Profibus DP

Previous

digital input module - 4I - 100..240V AC - 2 wires

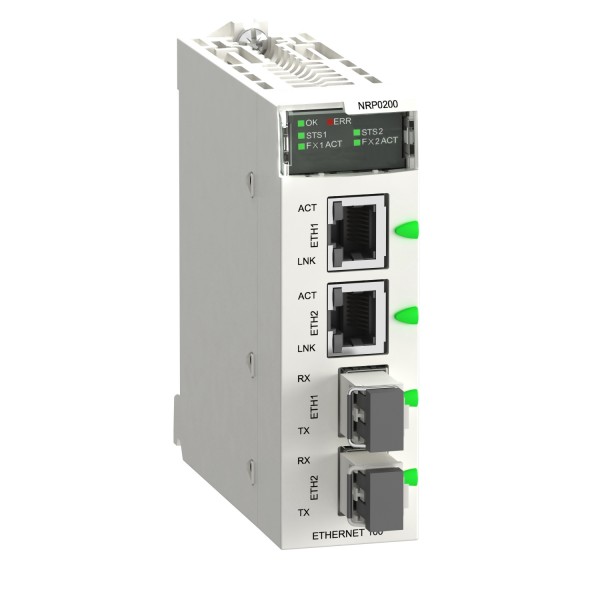

Fiber Converter MM/LC 2CH 100Mb

Ülevaaded: 0

Tootekood: BMXNRP0200

Quick Overview

Saadavus: Tellimisel

778,05 € (ilma KM-ta)

Details

Main
range of product
Modicon X80
product or component type
Fibre optic repeater
optic fiber type
Multi mode
Complementary
rated voltage
24 V
current consumption
140 mA typical
200 mA maximum
function available
Hot swap
number of port
2 RJ45 100BASE-TX IEEE 802.3u
2 fiber optic 100BASE-FX IEEE 802.3u
local signalling
Power supply status 1 LED green)
Error condition (ERR) 1 LED red)
Link status 2 LEDs green)
Fiber port state and activity 2 LEDs green)
wavelength
1310 nm
operating distance
0...2000 m
attenuation
-23,5…-14 dB 50/125 µm)
-20…-14 dB 62.5/125 µm)
rise/fall time
3 ns
receiver sensitivity
- 31...- 14 dBm
marking
CE
width
32 mm
height
100 mm
depth
86 mm
net weight
203 g
Environment
ambient air temperature for operation
0…60 °C
ambient air temperature for storage
-40…70 °C
relative humidity
0…95 %
dielectric strength
1400 V DC between field and bus
500 V DC between channels
IP degree of protection
IP20
operating altitude
0...4000 m
directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive
standards
EN 61131-2
EN 61000-6-4
EN 61000-6-2
EN 61010-2-201
product certifications
Merchant Navy
C-Tick
GOST
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
